Runner tutorial

In this tutorial we start with an empty project and build a complete runner game with an animated character, physics collision, pickups and scoring.

There is a lot to take in when learning a new game engine, so we have created this tutorial to get you started. It is a fairly complete tutorial that walks through how the engine and the editor works. We assume that you have some familiarity with programming.

If you need an introduction to Lua programming, check out our Lua in Defold manual.

If you feel that this tutorial is a bit too much to begin with, please check out our tutorials page where we have a selection of tutorials of varied difficulty.

If you prefer to watch video tutorials, please check out the video version on Youtube.

We use game assets from two other tutorials, with some small modifications. The tutorial is divided into several steps, with each part taking us a significant step towards the final game.

The end result will be a game where you control a hero character that runs through an environments, collecting coins and avoiding obstacles. The hero character runs at fixed speed and the player controls only the hero character’s jumping by the press of a single button (or screen touch on a mobile device). The level consists of an endless stream of platforms to jump on - and of coins to collect.

If you at any point get stuck on this tutorial or when creating your game don’t hesitate to ask us for help at the Defold Forum. In the forum you can discuss Defold, ask for help from the Defold team, see how other game developers solved their problems and find new inspiration. Get started now.

Throughout the tutorial, detailed descriptions on concepts and how to do certain moments are marked like this paragraph. If you feel that these section go into too much detail, please skip them.

So let’s begin. We hope you will have a lot of fun going through this tutorial and that it helps you getting going with Defold.

Download the assets for this tutorial here.

STEP 1 - Installation and setup

The first step is to download the following files.

Now, if you haven’t already downloaded and installed the Defold editor, it’s time to do that:

Downloading

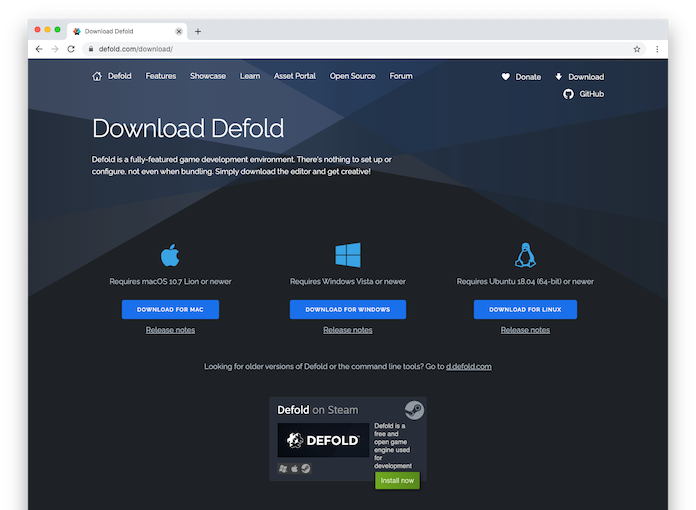

Go to the Defold download page where you will find Download buttons for macOS, Windows and Linux (Ubuntu):

download editor

Installation

Installation on macOS
The downloaded file is a DMG image containing the program.

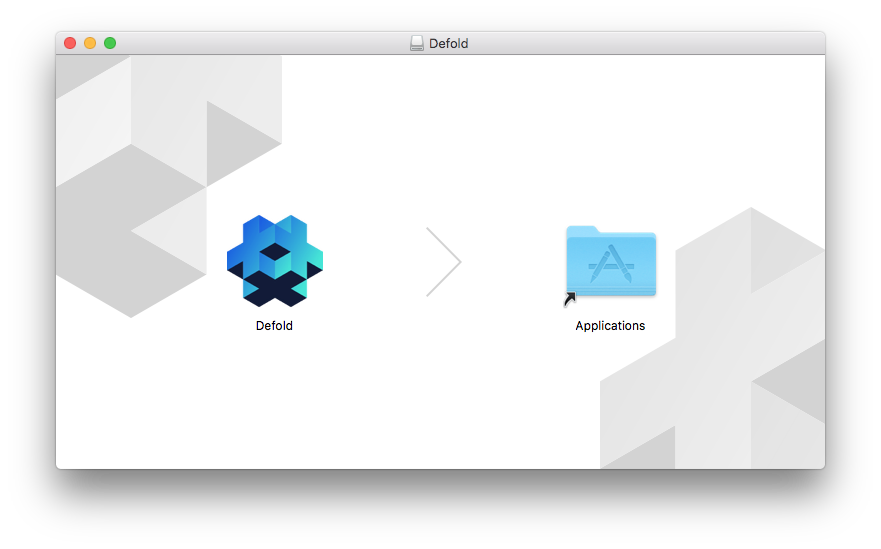

  1. Locate the file “Defold-x86_64-macos.dmg” and double click it to open the image.
  2. Drag the application “Defold” to the “Applications” folder link.

To start the editor, open your “Applications” folder and double click the file “Defold”.

Defold macOS

Installation on Windows
The downloaded file is a ZIP archive that needs to be extracted:
  1. Locate the archive file “Defold-x86_64-win32.zip”, press and hold (or right-click) the folder, select Extract All, and then follow the instructions to extract the archive to a folder named “Defold”.
  2. Move the folder “Defold” to your preferred location (e.g. D:\Defold). You should not move Defold to C:\Program Files (x86)\ or C:\Program Files\ since this will prevent the editor from updating.

To start the editor, open the folder “Defold” and double click the file “Defold.exe”.

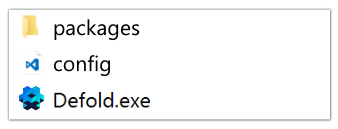

Defold windows

Installation on Linux
The downloaded file is a ZIP archive that needs to be extracted:
  1. From a terminal, locate the archive file “Defold-x86_64-linux.zip” unzip it to a target Directory called “Defold”.

    $ unzip Defold-x86_64-linux.zip -d Defold


To start the editor, change directory to where you extracted the application, then run the Defold executable, or double click it on your desktop.

$ cd Defold
$ ./Defold

There is a helper to install a desktop entry on the Help > Create Desktop Entry menu.

If you run into any problems starting the editor, opening a project or running a Defold game please refer to the Linux section of the FAQ.

Install an old version

Every beta and stable version of Defold is also available on GitHub.

When the editor is installed and started it’s time to create a new project and getting it ready. Create a new project from the “Empty Project” template.

This tutorial uses Spine features, which has been moved to its own extension post Defold 1.2.188. If you are on a newer version, please add the Spine Extension to the dependencies section of game.project.

The editor

The first time you start the editor, the editor starts blank, without any project open so choose Open Project from the menu and select your newly created project. You will also be prompted to create a “branch” for the project.

Now, in the Assets pane you will see all files that are part of the project. If you double-click the file “main/main.collection” the file will open up in the editor view in the center:

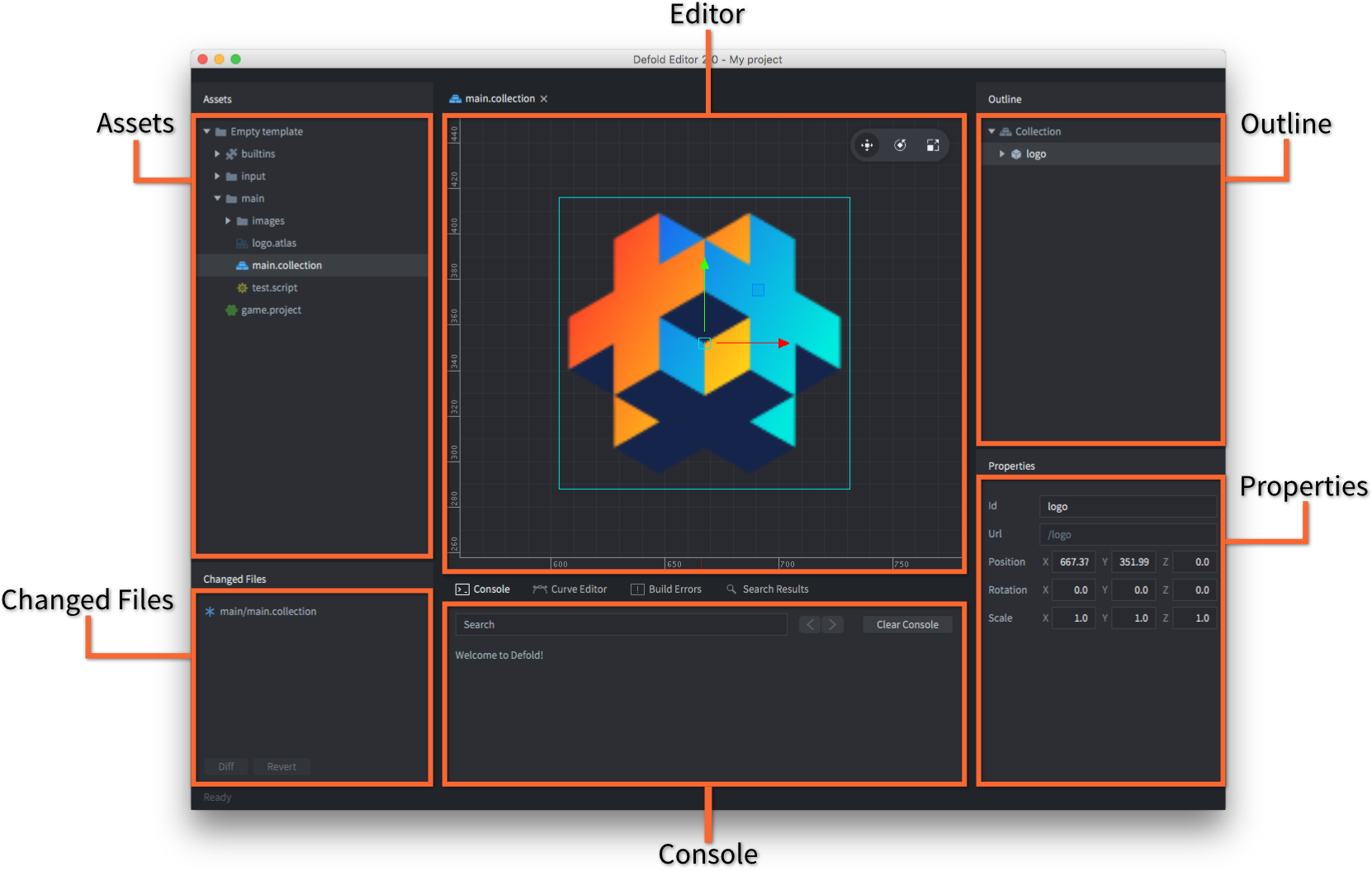

Editor overview

The editor consists of the following main areas:

Assets pane
This is a view of all files in your project. Different file types have different icons. Double click on a file to open in in a designated editor for that file type. The special read-only folder builtins is common for all projects and include useful items like a default render script, a font, materials for rendering various components and other things.
Main Editor View
Depending on which filetype you’re editing, this view will show an editor for that type. Most commonly used is the Scene editor that you see here. Each open file is shown in a separate tab.
Changed Files
Contains a list of all the edits you have made in your branch since last synchronization. So if you see anything in this pane, you have changes that are not on the server yet. You can open a text-only diff and revert changes through this view.
Outline
The content of the currently edited file in a hierarchical view. You can add, delete, modify and select objects and components through this view.
Properties
The properties set on the currently selected object or component.
Console
When running the game, this view captures output (logging, errors, debug info etc) coming from the game engine, and also any custom print() and pprint() debug messages from your scripts. If your app or game won’t start the console is the first thing to check. Behind the console are a set of tabs displaying error information as well as a curve editor that is used when building particle effects.

Running the game

The “Empty” project template actually is completely empty. Nonetheless, select Project ▸ Build to build the project and launch the game.

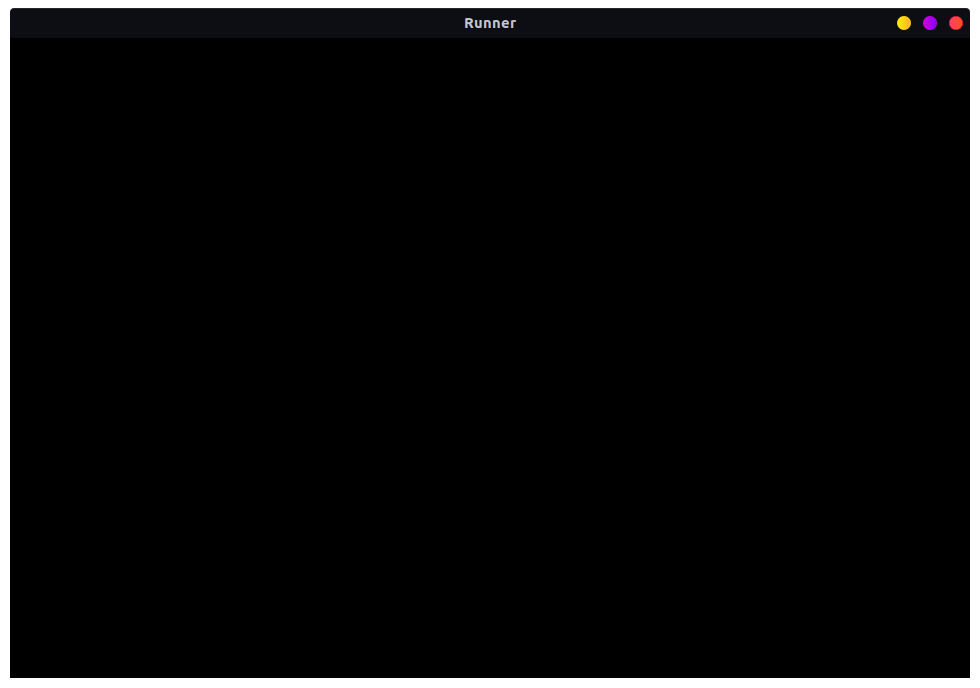

Build

A black screen is perhaps not very exciting, but it’s a running Defold game application and we can easily modify it into something more interesting. So let’s do that.

The Defold editor works on files. By double-clicking a file in the Assets pane you open it in a suitable editor. You can then work with the contents of the file.

When you are done editing a file you have to save it. Select File ▸ Save in the main menu. The editor gives a hint by adding an asterisk ‘*’ to the filename in the tab for any file that contain unsaved changes.

File with unsaved changes

Setting up the project

Before we begin, let’s set up several settings for our projects. Open the game.project asset from the Assets Pane and scroll down to the Display section. Set the width and height of the project to 1280 and 720 respectively.

You also need to add the Spine extension to the project so that we can animate the hero character. Add a version of the Spine extension which is compatible with the version of the Defold editor which you have installed. Available Spine versions can be seen here:

https://github.com/defold/extension-spine/releases

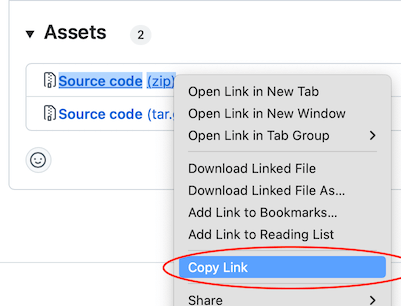

Right click on the link to the zip file for the release you want to use:

Right click and copy link to release

Add the link to the release to your list of game.project dependencies. When the Spine extension has been added you also need to restart the editor to activate the editor integration included with the Spine extension.

STEP 2 - Creating the ground

Let’s take the first baby steps and create an arena for our character, or rather a piece of scrolling ground. We do this in a few steps.

  1. Import the image assets into the project by dragging the files “ground01.png” and “ground02.png” image files (from the sub-folder “level-images” in the asset package) into a suitable location in the project, for instance the folder “images” inside the “main” folder.
  2. Create a new Atlas file to hold the ground textures (right-click a suitable folder, for instance the main folder, in the Assets pane and select New ▸ Atlas File). Name the atlas file level.atlas.

An Atlas is a file that combines a set of separate images into one larger image file. The reason for doing that is to save space and also to gain performance. You can read more about Atlases and other 2D graphics features in the 2D graphics documentation.

  1. Add the ground images to the new atlas by right-clicking the atlas root in the Outline and select Add Images. Select the imported images and click OK. Each image in the atlas is now accessible as a one-frame animation (still image) to use in sprites, particle effects and other visual elements. Save the file.

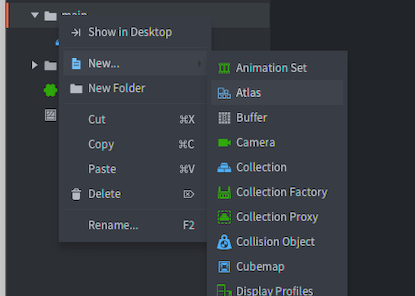

Create new atlas

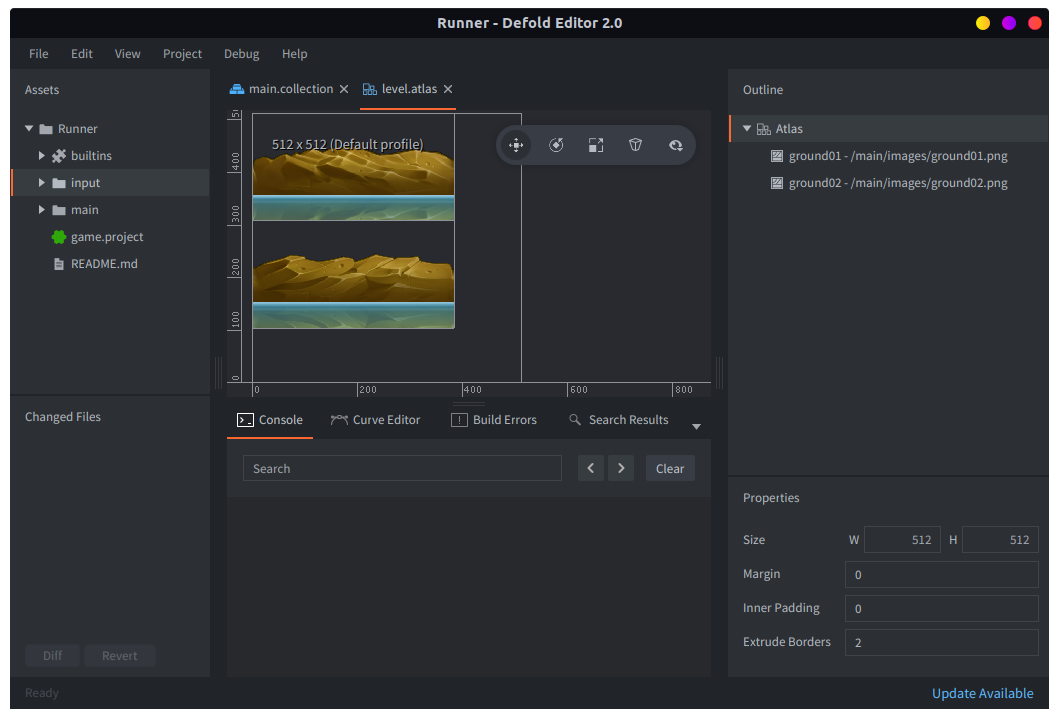

Add images to atlas

Why doesn’t it work!? A common problem people have when they starting with Defold is forgetting to save! After adding images to an atlas you need to save the file before you can access that image.

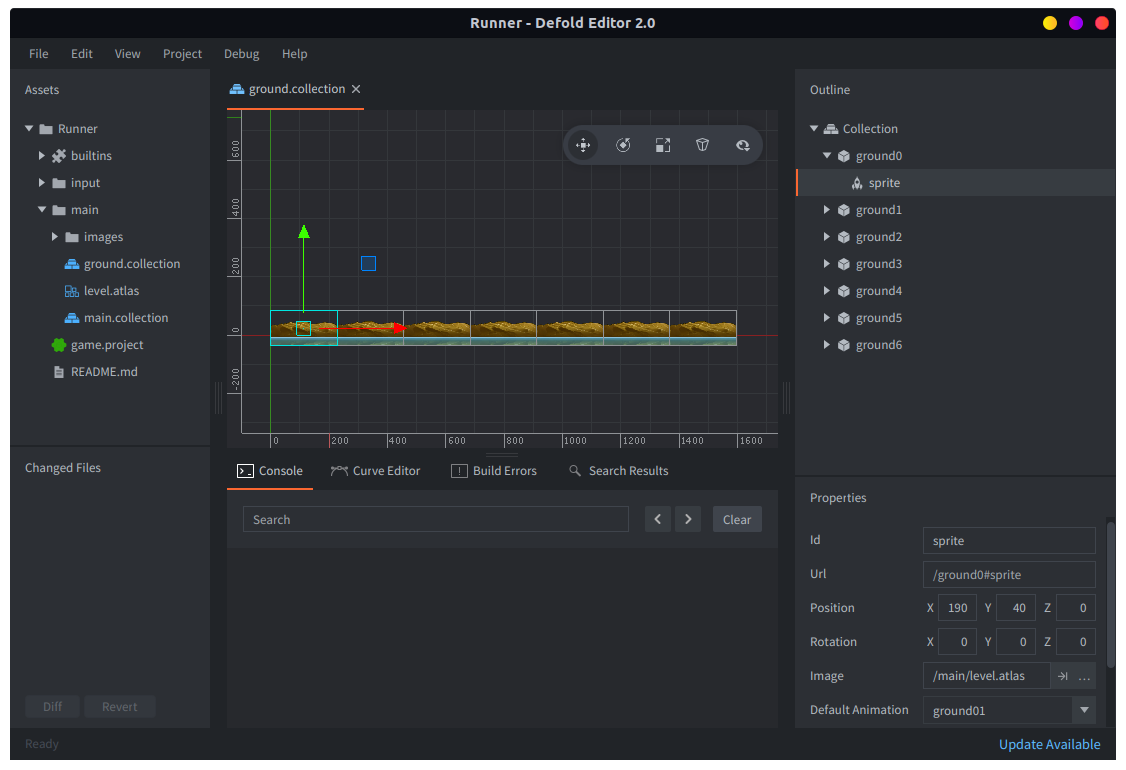

  1. Create a collection file ground.collection for the ground and add 7 game objects to it (right-click the root of the collection in the Outline view and select Add Game Object). Name the objects “ground0”, “ground1”, “ground2” etc by changing the Id property in the Properties view. Note that Defold automatically assigns new game objects a unique id.

  2. In each object, add a sprite component (right-click the game object in the Outline view and select Add Component, then select Sprite and click OK), set the Image property of the sprite component to the atlas you just created and set the default animation of the sprite to one of the two ground images. Set the X position of the sprite component (not the game object) to 190 and Y position to 40. Since the width of the image is 380 pixels and we shift it sideways half as many pixels, the pivot of the game object will be at the leftmost edge of the sprite image.

Create ground collection

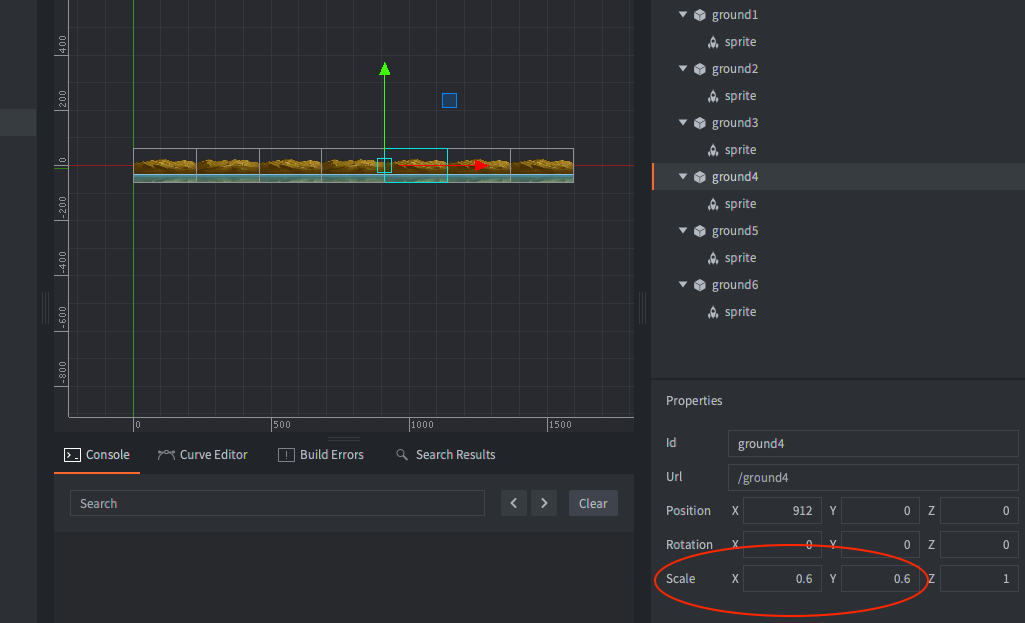

  1. The graphics we’re using is a bit too large so scale each game object to 60% (0.6 scaling in X and Y, resulting in 228 pixel wide ground pieces).

Scale ground

  1. Position all the game objects in line. Set the X positions of the game objects (not sprite components) to 0, 228, 456, 684, 912, 1140 and 1368 (multiples of the width 228 pixels).

It’s probably easiest to create one complete scaled game object with a sprite component and then copy it. Mark it in the Outline view, then select Edit ▸ Copy and then Edit ▸ Paste.

It is worth noticing that if you want larger or smaller tiles you can just change the scaling. However, doing so will also require that you change the X positions of all ground game objects to multiples of the new width.

  1. Save the file, then add ground.collection to the main.collection file: first double click the main.collection file, then right-click the root object in the Outline view and select Add Collection From File. In the dialog, select ground.collection and click OK. Make sure you place ground.collection in position 0, 0, 0 or it will be offset visually. Save it.

  2. Start up the game (Project ▸ Build to see that everything is in place.

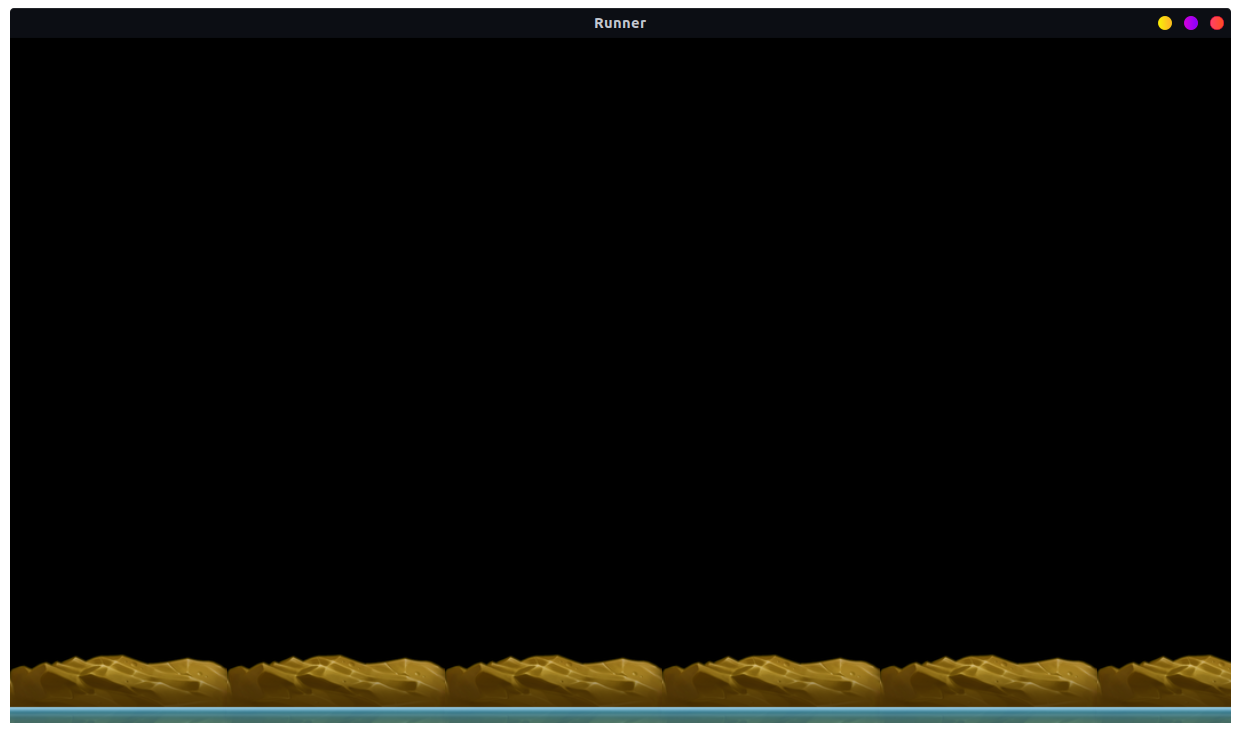

Still ground

By now you might be confused and wonder about what all these things that we have been creating really are, so let us take a moment and look at the most basic building blocks in any Defold project:

Game objects
These are things that exist in the running game. Each game object has a location in 3D space, a rotation and scaling. It doesn’t necessarily have to be visible. A game object holds any number of components that adds abilities like graphics (sprites, tilemaps, models, spine models and particle effects), sounds, physics, factories (for spawning) and more. Lua script components can also be added to give a game object behaviors. Each game object that exist in your games has an id that you need in order to communicate with it, through message passing.
Collections
Collections do not exist by themselves in a running game but are used to enable static naming of game object and at the same time allowing multiple instances of the same game object. In practice, collections are used as containers for game objects and other collections. You can use collections much like prototypes (also known as “prefabs” or “blueprints” in other engines) of complex hiearchies of game objects and collections. At startup, the engine loads a main collection and breathes life to anything you have put inside it. By default this is the main.collection file in the main folder of your project, but you can change that in the project settings.

For the time being these description probably suffices. However, a much more comprehensive dive through these things can be found in the Building blocks manual. It is a good idea to visit that manual at a later stage to get a deeper understanding on how things work in Defold.

STEP 3 - Making the ground move

Now that we have all ground pieces in place, it is rather simple to get them moving. The idea is this: move the pieces right-to-left and when a piece reach the leftmost edge outside of the screen, move it to the rightmost position. To move all these game objects requires a Lua script so let’s create one:

  1. Right-click the main folder in the Assets pane and select New ▸ Script File. Name the new file ground.script.
  2. Double click the new file to bring up the Lua script editor.
  3. Delete the default content of the file and copy the following Lua code into it, then save the file.
-- ground.script
local pieces = { "ground0", "ground1", "ground2", "ground3",
                    "ground4", "ground5", "ground6" } -- <1>

function init(self) -- <2>
    self.speed = 360  -- Speed in pixels/s
end

function update(self, dt) -- <3>
    for i, p in ipairs(pieces) do -- <4>
        local pos = go.get_position(p)
        if pos.x <= -228 then -- <5>
            pos.x = 1368 + (pos.x + 228)
        end
        pos.x = pos.x - self.speed * dt -- <6>
        go.set_position(pos, p) -- <7>
    end
end
  1. Store the id’s of the ground game objects in a Lua table so we can iterate over them.
  2. The init() function is called when the game object comes to life in the game. We initiate a object local member variable that contains the speed of the ground.
  3. update() is called once each frame, typically 60 times per second. dt contains the number of seconds since the last call.
  4. Iterate over all the ground game objects.
  5. Store the current position in a local variable, then if the current object is on the leftmost edge, move it to the rightmost edge.
  6. Decrease the current X-position with the set speed. Multiply with dt to get framerate independent speed in pixels/s.
  7. Update the object’s position with the new speed.

Defold is a fast engine core that manages your data and game objects. Any logic or behavior that you need for your game is created in the Lua language. Lua is a fast and light-weight programming language that is great for writing game logic. There are great resources available to learn the language, like the book http://www.lua.org/pil/[Programming in Lua] and the official http://www.lua.org/manual/5.3/[Lua reference manual].

Defold adds a set of APIs on top of Lua, as well as a message passing system that allows you to program communications between game objects. See the Message passing manual for details on how this works.

You can toggle the Assets Pane, Console and Outline sections of the editor using the F6, F7 and F8 keys respectively

Now that we have a script file, we should add a reference to it to a component in a game object. That way, the script will be executed as part of the game object lifecycle. We do this by creating a new game object in ground.collection and add a Script component to the object that refers to the Lua script file we just created:

  1. Right-click the root of the collection and select Add Game Object. Set the object’s id to “controller”.
  2. Right-click the “controller” object and select Add Component from file, then select the ground.script file.

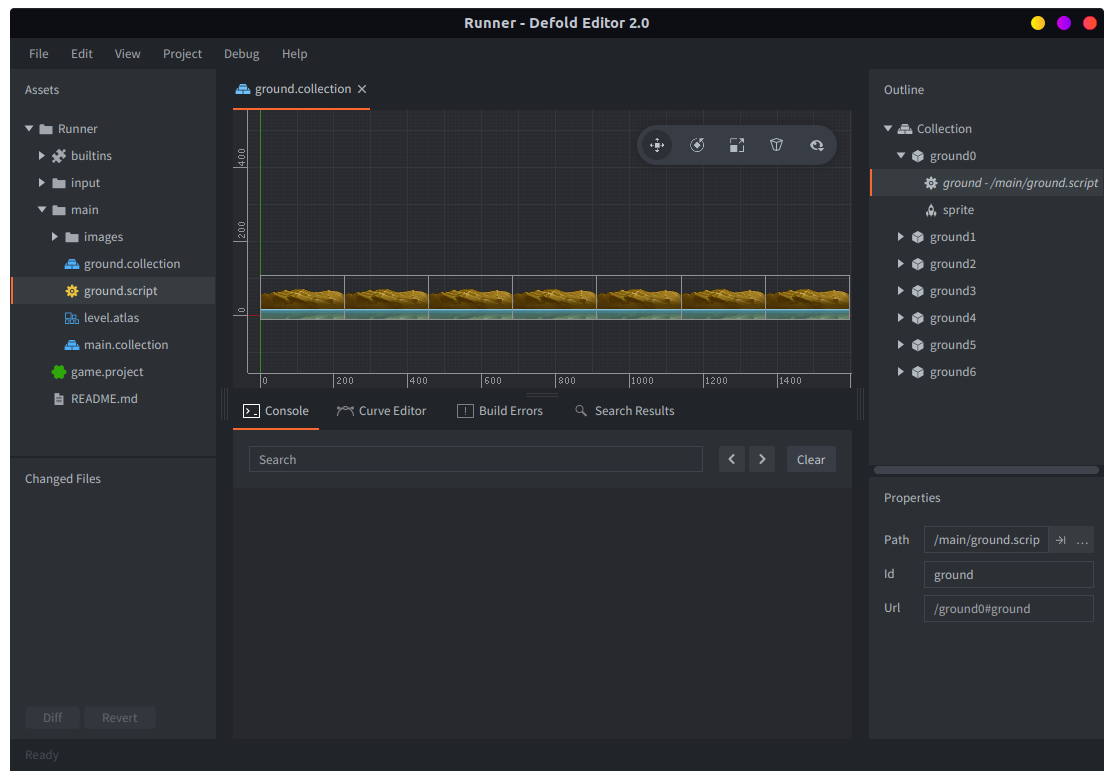

Ground controller

Now when you run the game, the “controller” game object will run the script in its Script component, causing the ground to scroll smoothly across the screen.

STEP 4 - Creating a hero character

The hero character will be a game object consisting of the following components:

A Spine Model
This gives us a paper-doll like little hero character whose body parts can be smoothly (and cheaply) animated.
A Collision Object
This will detect collisions between the hero character and things in the level that it can run on, that are dangerous or that can be picked up.
A Script
This acquires user input and reacts to that, makes the hero character jump, animate and deal with collisions.

Start by importing the body part images, then add them to a new atlas that we call hero.atlas:

  1. Create a new folder by right-clicking in the Assets pane and selecting New ▸ Folder. Make sure to not select a folder before clicking or the new folder will be created inside the marked one. Name the folder “hero”.
  2. Create a new atlas file by right-clicking the hero folder and selecting New ▸ Atlas File. Name the file hero.atlas.
  3. Create a new subfolder images in the hero folder. Right-click the hero folder and select New ▸ Folder.
  4. Drag the bodypart images from the hero-images folder in the asset package to the images folder you just created in the Assets pane.
  5. Open hero.atlas, right-click the root node in the Outline and select Add Images. Mark all body part images and click OK.
  6. Save the atlas file.

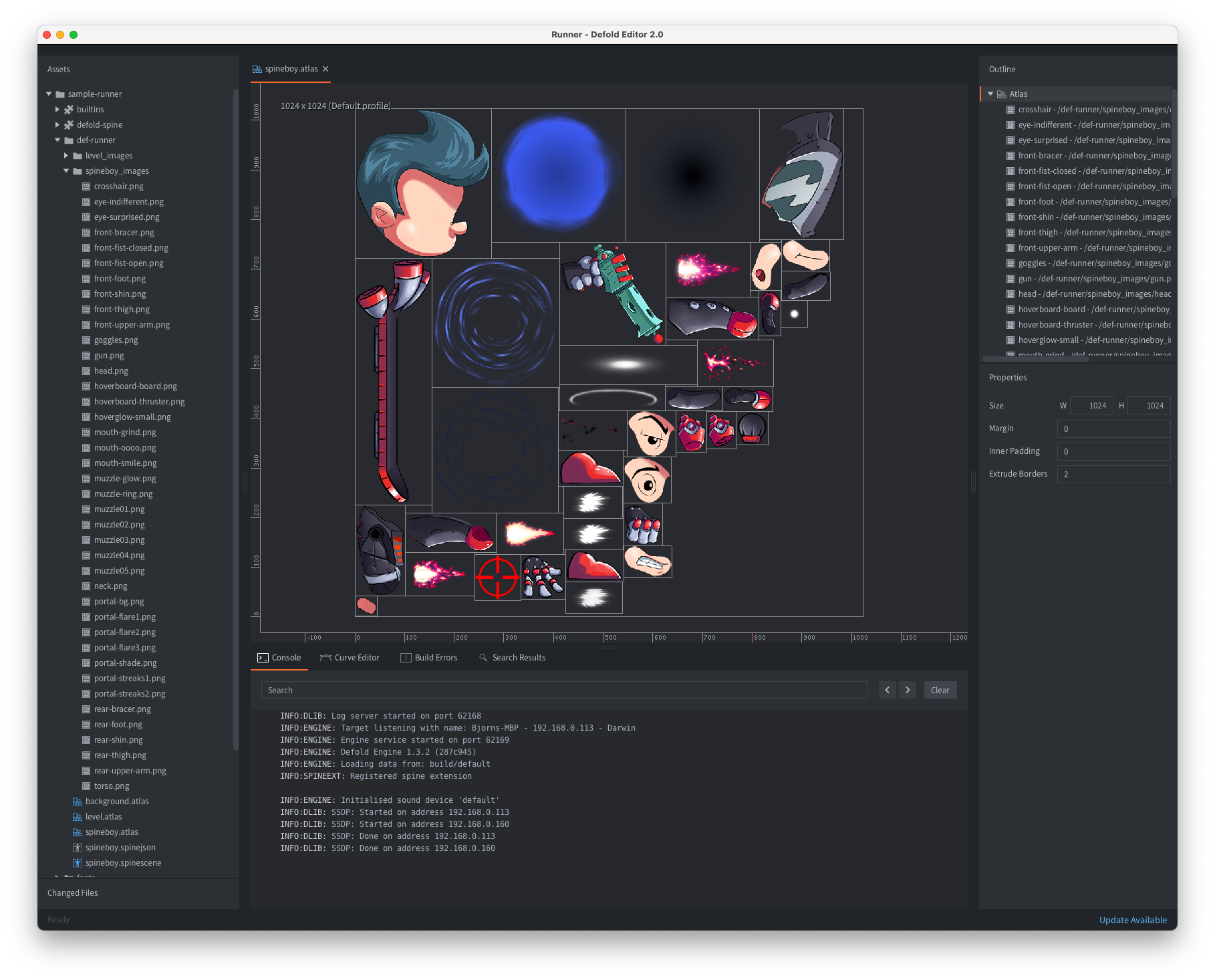

Hero atlas

We also need to import the Spine animation data and set up a Spine Scene for it:

  1. Drag the file hero.spinejson (it is included in the asset package) to the hero folder in the Assets pane.
  2. Create a Spine Scene file. Right-click the hero folder and select New ▸ Spine Scene File. Name the file hero.spinescene.
  3. Double-click the new file to open and edit the Spine Scene.
  4. Set the spine_json property to the imported JSON file hero.spinejson. Click the property, then click the file selector button to open the resource browser.
  5. Set the atlas property to refer to the hero.atlas file.
  6. Save the file.

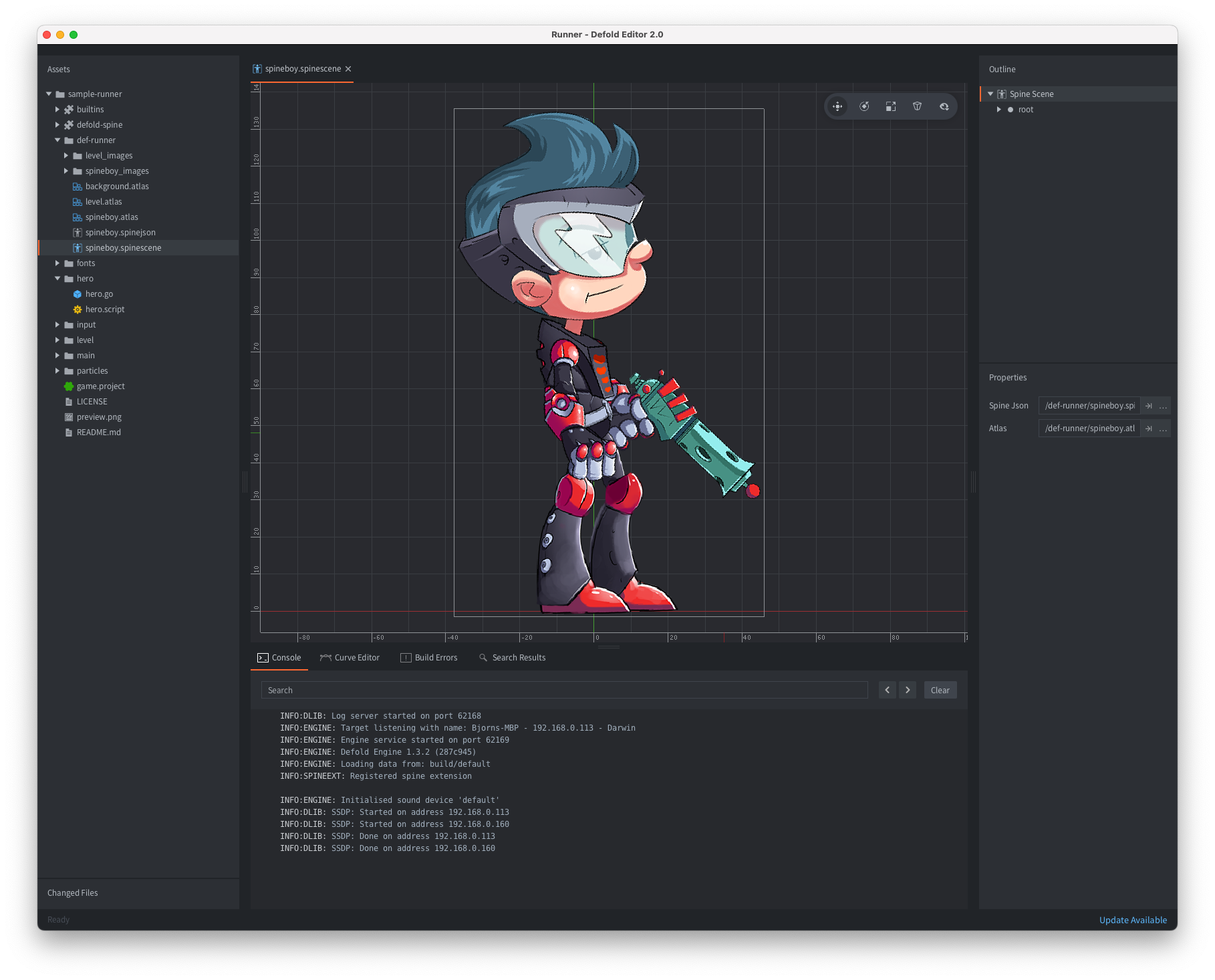

Hero spinescene

The file hero.spinejson has been exported in Spine JSON format. You will need the Spine animation software to be able to create such files. If you want to use other animation software you can export your animations as sprite-sheets and use them as flip-book animations either from Tile Source or Atlas resources. See the manual on Animation for more information.

Building the game object

Now we can start constructing the hero gameobject:

  1. Create a new file hero.go (Right-click the hero folder and select New ▸ Game Object File.
  2. Open the game object file.
  3. Add a Spine Model component to it. (Right-click the root in the Outline and select Add Component, then select “Spine Model”.)
  4. Set the Spine Scene property of the component to the file hero.spinescene that you just created and select “run_right” as the default animation (we’ll fix animation properly later)
  5. Save the file.

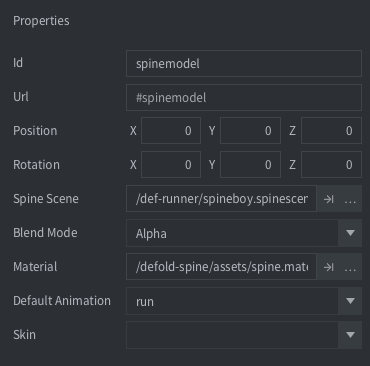

Spinemodel properties

Now it’s time to add physics for collision to work:

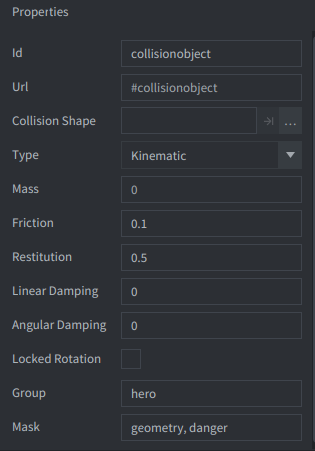

  1. Add a Collision Object component to the hero game object. (Right-click the root in the Outline and select Add Component, then select “Collision Object”)
  2. Right-click the new component and select Add Shape. Add two shapes to cover the characters’s body. A sphere and a box will do.
  3. Click the shapes and use the Move Tool (Scene ▸ Move Tool) to move the shapes into good positions.
  4. Mark the Collision Object component and set the Type property to “Kinematic”.

“Kinematic” collision means that we want collisions to register, but the physics engine won’t solve collisions automatically and simulate the objects. The physics engine supports a number of different types of collision objects. You can read more about them in the Physics documentation.

It is important that we specify what the collision object should interact with:

  1. Set the Group property to a new collision group called “hero”.
  2. Setting the Mask property to another group “geometry” that this collision object should register collisions with. Note that the “geometry” group does not yet exist, but we will soon add collision objects belonging to it.

Finally, create a new hero.script file and add it to the game object.

  1. Right-click the hero folder in the Assets pane and select New ▸ Script File. Name the new file hero.script.
  2. Open the new file, then copy and paste the following code into the script file, then save it. (The code is pretty straightforward apart from the solver that separates the hero collision shape from what it collides with. That is done by the handle_geometry_contact() function.)

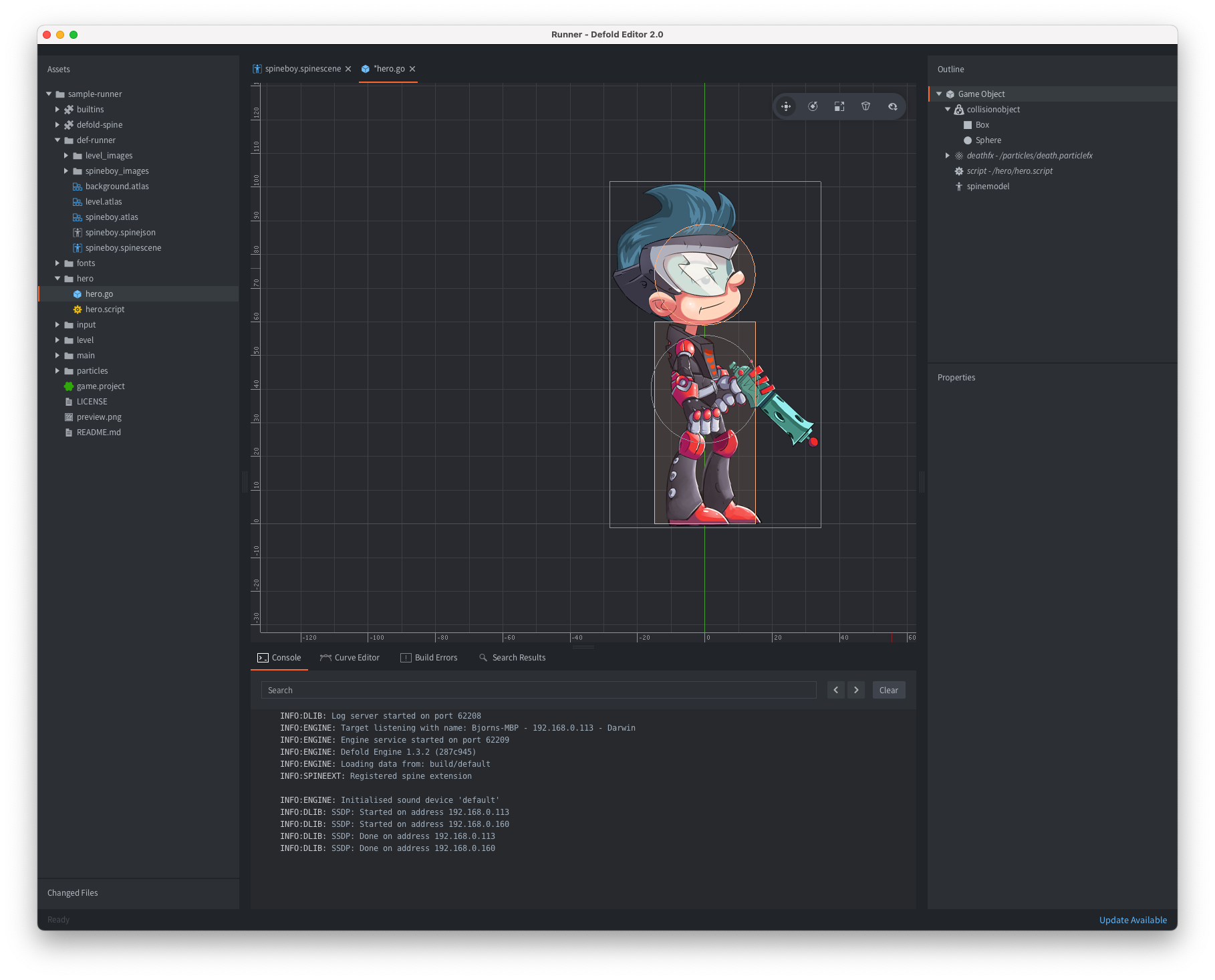

Hero game object

The reason we are handling the collision ourselves is that if we instead set the type on the character’s collision object to dynamic, the engine will peform a Newtonian simulation of the bodies involved. For a game like this, such a simulation is far from optimal so instead of fighting the physics engine with various forces, we take full control.

Now, to do that and handle collision properly requires a little bit of vector mathematics. A thorough explanation on how to solve kinematic collisions is given in the Physics documentation.

-- gravity pulling the player down in pixel units/sˆ2
local gravity = -20

-- take-off speed when jumping in pixel units/s
local jump_takeoff_speed = 900

function init(self)
    -- this tells the engine to send input to on_input() in this script
    msg.post(".", "acquire_input_focus")

    -- save the starting position
    self.position = go.get_position()

    -- keep track of movement vector and if there is ground contact
    self.velocity = vmath.vector3(0, 0, 0)
    self.ground_contact = false
end

function final(self)
    -- Return input focus when the object is deleted
    msg.post(".", "release_input_focus")
end

function update(self, dt)
    local gravity = vmath.vector3(0, gravity, 0)

    if not self.ground_contact then
        -- Apply gravity if there's no ground contact
        self.velocity = self.velocity + gravity
    end

    -- apply velocity to the player character
    go.set_position(go.get_position() + self.velocity * dt)

    -- reset volatile state
    self.correction = vmath.vector3()
    self.ground_contact = false
end

local function handle_geometry_contact(self, normal, distance)
    -- project the correction vector onto the contact normal
    -- (the correction vector is the 0-vector for the first contact point)
    local proj = vmath.dot(self.correction, normal)
    -- calculate the compensation we need to make for this contact point
    local comp = (distance - proj) * normal
    -- add it to the correction vector
    self.correction = self.correction + comp
    -- apply the compensation to the player character
    go.set_position(go.get_position() + comp)
    -- check if the normal points enough up to consider the player standing on the ground
    -- (0.7 is roughly equal to 45 degrees deviation from pure vertical direction)
    if normal.y > 0.7 then
        self.ground_contact = true
    end
    -- project the velocity onto the normal
    proj = vmath.dot(self.velocity, normal)
    -- if the projection is negative, it means that some of the velocity points towards the contact point
    if proj < 0 then
        -- remove that component in that case
        self.velocity = self.velocity - proj * normal
    end
end

function on_message(self, message_id, message, sender)
    if message_id == hash("contact_point_response") then
        -- check if we received a contact point message. One message for each contact point
        if message.group == hash("geometry") then
            handle_geometry_contact(self, message.normal, message.distance)
        end
    end
end

local function jump(self)
    -- only allow jump from ground
    if self.ground_contact then
        -- set take-off speed
        self.velocity.y = jump_takeoff_speed
    end
end

local function abort_jump(self)
    -- cut the jump short if we are still going up
    if self.velocity.y > 0 then
        -- scale down the upwards speed
        self.velocity.y = self.velocity.y * 0.5
    end
end

function on_input(self, action_id, action)
    if action_id == hash("jump") or action_id == hash("touch") then
        if action.pressed then
            jump(self)
        elseif action.released then
            abort_jump(self)
        end
    end
end
  1. Add the script as a Script component to the hero object (right-click the root of hero.go in the Outline and select Add Component from File, then select the hero.script file).

If you want you can now try and temporarily add the hero character to the main collection and run the game to see it fall through the world.

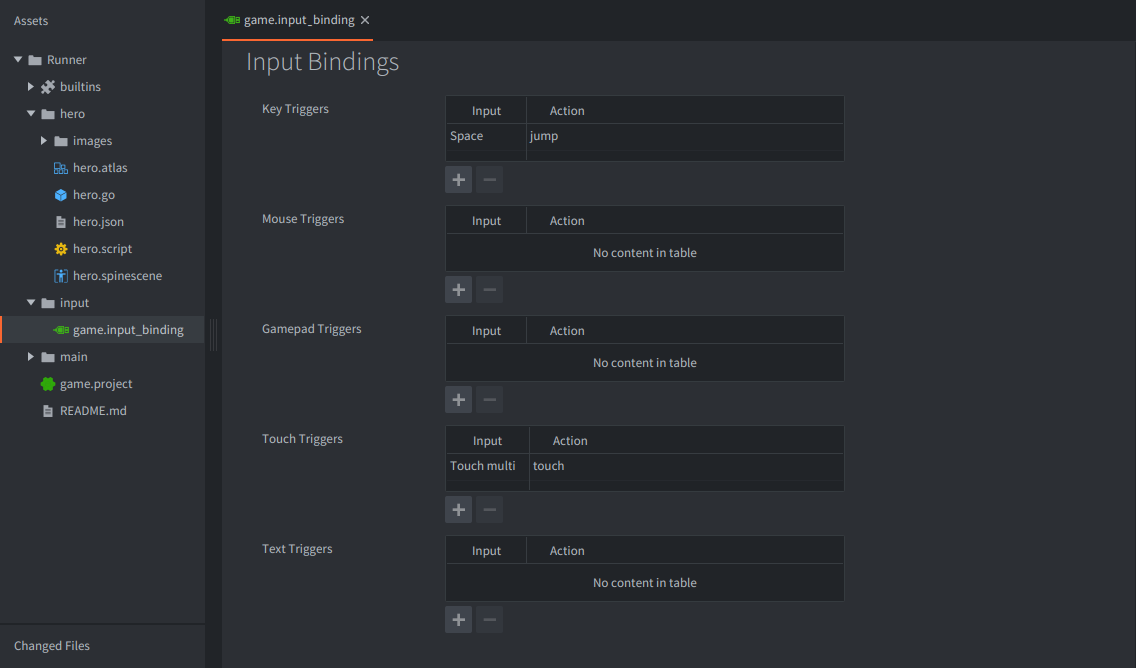

The last thing we need for the hero to be functional is input. The script above already contains an on_input() function that responds to actions “jump” and “touch” (for touch screens). Let’s add input bindings for these actions.

  1. Open “input/game.input_bindings”
  2. Add a key trigger for “KEY_SPACE” and name the action “jump”
  3. Add a touch trigger for “TOUCH_MULTI” and name the action “touch”. (The action names are arbitrary but should match the names in your script. Note that you cannot have the same action name on multiple triggers)
  4. Save the file.

Input bindings

STEP 5 - Refactoring the level

Now that we have a hero character set up with collision and all, we need to also add collision to the ground so the hero character has got something to collide with (or run on). We’ll do that in a second, but first, we should do a little refactoring and put all level stuff in a separate collection and clean up the file structure a bit:

  1. Create a new level.collection file (right-click main in the Assets pane and select New ▸ Collection File).
  2. Open the new file, right-click the root in the Outline and select Add Collection from File and choose ground.collection.
  3. In level.collection, right-click the root in the Outline and select Add Game Object File and choose hero.go.
  4. Now, create a new folder called level in the project root (right-click the white space below game.project and select New ▸ Folder), then move the level assets you have created so far to it: the files level.collection, level.atlas, the “images” folder holding the images for the level atlas, and the files ground.collection and ground.script.
  5. Open main.collection, delete ground.collection and instead add level.collection (right-click and Add Collection from File) which now contains the ground.collection. Make sure that you place the collection at position 0, 0, 0.

As you might have noticed by now, the file hierarchy seen in the Assets pane is decoupled from the content structure you build in your collections. Individual files are referenced from collection- and game object files, but their location is completely arbitrary.

If you want to move a file to a new location Defold helps by automatically updating references to the file (refactoring). When making a complex piece of software, like a game, it is extremely helpful to be able to change the structure of the project as it grows and changes. Defold encourages that and makes the process smooth so don’t be afraid to move your files around!

We should also add a controller game object with a script component to the level collection:

  1. Create a new script file. Right-click the level folder in the Assets pane and select New ▸ Script File. Name the file controller.script.
  2. Open the script file, copy the following code into it and save the file:

     -- controller.script
     go.property("speed", 360) -- <1>

     function init(self)
         msg.post("ground/controller#ground", "set_speed", { speed = self.speed })
     end

    1. This is a script property. We set it to a default value but any placed instance of the script can override this value, directly in the properties view in the editor.
  3. Open the level.collection file.
  4. Right-click the root in the Outline and select Add Game Object.
  5. Set the Id to “controller”.
  6. Right-click the “controller” game object in the Outline and select Add Component from File and select the controller.script file in the level folder.
  7. Save the file.

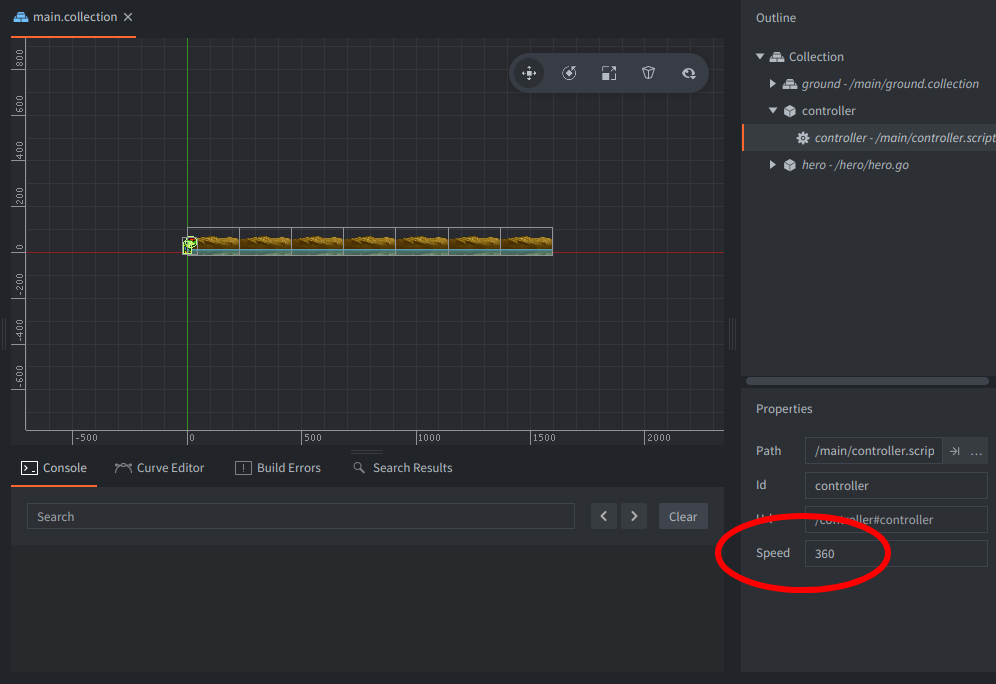

Script property

The “controller” game object does not exist in a file but is created in-place in the level collection. This means that the game object instance is created from the in-place data. That is fine for single purpose game objects like this one. If you need multiple instances of some game object and want to be able to modify the prototype/template used to create each instance, just create a game object file and add the game object from file to the collection. That creates a game object with a reference to the file as prototype/template.

Now, the purpose of this “controller” game object is to control everything that relates to the running level. Soon, this script will be in charge of spawning platforms and coins for the hero to interact with, but for now it will only set the speed of the level.

In the level controller script’s init() function, it sends a message to the ground controller object’s script component, addressed by its id:

msg.post("ground/controller#controller", "set_speed", { speed = self.speed })

The id of the controller game object is set to "ground/controller" since it lives in the “ground” collection. Then we add the component id "controller" after the hash character "#" that separates the object id from the component id. Note that the ground script does not yet have any code to react to the set_speed message so we have to add an on_message() function to ground.script and add logic for that.

  1. Open ground.script.
  2. Add the following code and save the file:
-- ground.script
function on_message(self, message_id, message, sender)
    if message_id == hash("set_speed") then -- <1>
        self.speed = message.speed -- <2>
    end
end
  1. All messages are hashed internally when sent and must be compared to the hashed value.
  2. The message data is a Lua table with the data that is sent with the message.

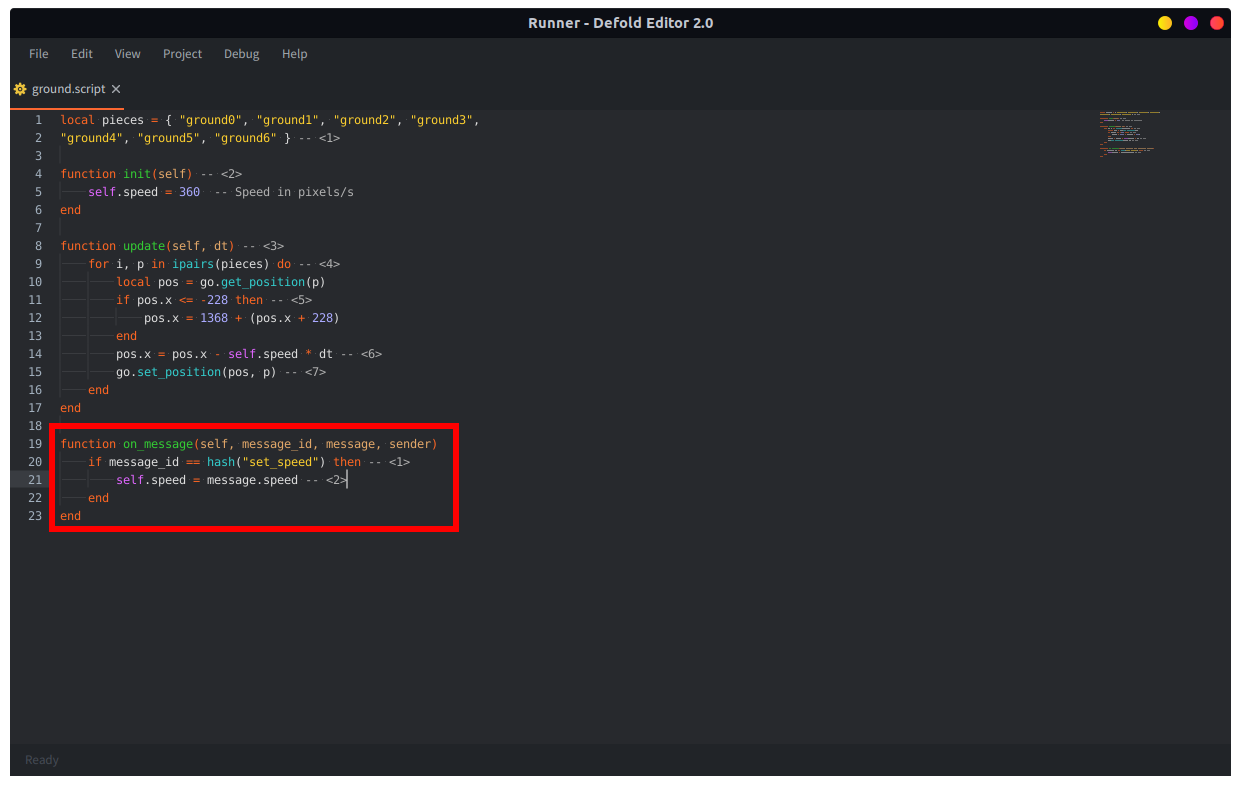

Add ground code

STEP 6 - Ground physics and platforms

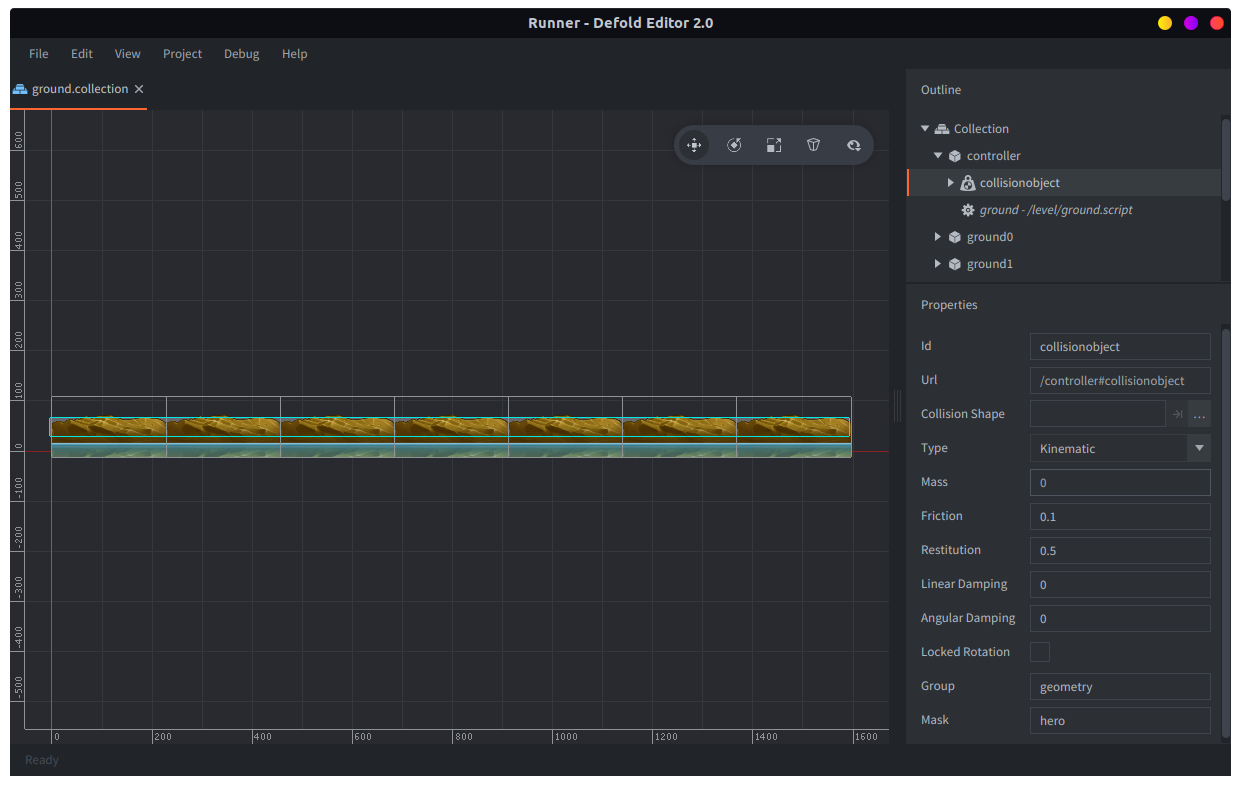

At this point we should add physics collision for the ground:

  1. Open the ground.collection file.
  2. Add a new Collision Object component to a suitable game object. Since the ground script doesn’t respond to collisions (all that logic is in the hero script) we can put it in any stationary game object (the ground tile objects are not stationary so avoid those). One good candidate is the “controller” game object but you can make a separate object for it if you like. Right-click the game object and select Add Component and select Collision Object.
  3. Add a box shape by right-clicking the Collision Object component and selecting Add Shape and then Box.
  4. Use the Move Tool and the Scale Tool (Scene ▸ Move Tool and Scene ▸ Scale Tool) to make the box cover all ground tiles.
  5. Set the collision object’s Type property to “Static” since the ground physics is not going to move.
  6. Set the collision object’s Group property to “geometry” and the Mask to “hero”. Now the hero’s collision object and this one will register collisions between them.
  7. Save the file.

Ground collision

Now you should be able to try running the game (Project ▸ Build). The hero character should run on the ground and it should be possible to jump with the kbd:[Space] button. If you run the game on a mobile device, you can jump by tapping on the screen.

To make life in our game world a little less dull, we should add platforms to jump on.

  1. Drag the image file rock_planks.png from the asset package to the level/images subfolder.
  2. Open level.atlas and add the new image to the atlas (right-click the root in the Outline and select Add Images).
  3. Save the file.
  4. Create a new Game Object file called platform.go in the level folder. (Right-click level in the Assets pane then select New ▸ Game Object File)
  5. Add a Sprite component to the game object (right-click the root in the Outline view and select Add Component and then Sprite).
  6. Set the Image property to refer to the file level.atlas and set Default Animation to “rock_planks”. For convenience, keep level objects in a subfolder “level/objects”.
  7. Add a Collision Object component to the platform game object (right-click the root in the Outline view and select Add Component).
  8. Make sure to set the component’s Type to “Kinematic” and the Group and Mask to “geometry” and “hero” respectively
  9. Add a Box Shape to the Collision Object component. (Right-click the component in the Outline and select Add Shape, then choose Box).
  10. Use the Move Tool and the Scale Tool (Scene ▸ Move Tool and Scene ▸ Scale Tool) to make the shape in the Collision Object component cover the platform.
  11. Create a Script file platform.script (Right-click in the Assets pane then select New ▸ Script File) and put the following code in the file, then save it:

    -- platform.script
    function init(self)
        self.speed = 540      -- Default speed in pixels/s
    end

    function update(self, dt)
        local pos = go.get_position()
        if pos.x < -500 then
            go.delete() -- <1>
        end
        pos.x = pos.x - self.speed * dt
        go.set_position(pos)
    end

    function on_message(self, message_id, message, sender)
        if message_id == hash("set_speed") then
            self.speed = message.speed
        end
    end

    1. Just delete the platform when it has been moved off the right edge of the screen
  12. Open platform.go and add the new script as a component (right-click the root in the Outline view and select Add Component From File and select platform.script).
  13. Copy platform.go to a new file (right-click the file in the Assets pane and select Copy, then right-click again and select Paste) and call the new file platform_long.go.
  14. Open platform_long.go and add a second Sprite component (right-click the root in the Outline view and select Add Component). Alternatively you can copy the existing Sprite.
  15. Use the Move Tool (Scene ▸ Move Tool) to place the Sprite components side by side.
  16. Use the Move Tool and the Scale Tool to make the shape in the Collision Object component cover both platforms.

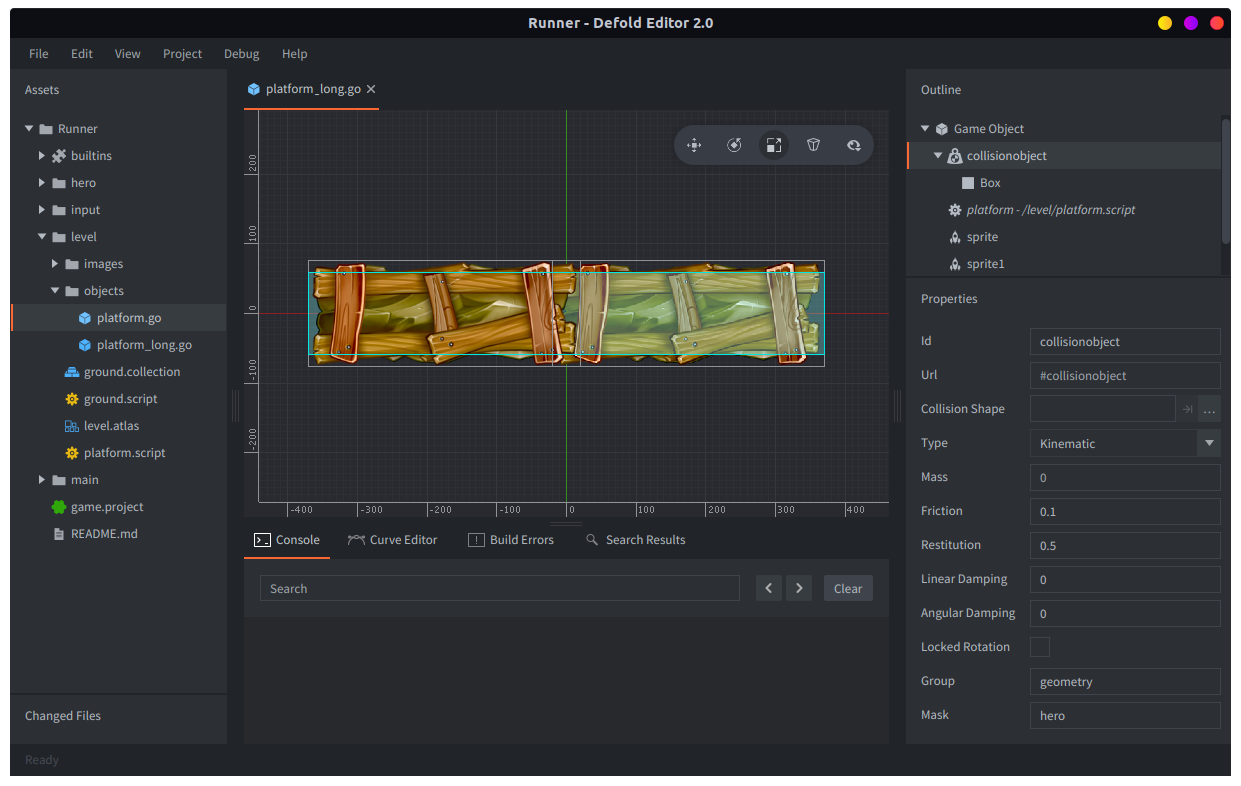

Platform

Note that both platform.go and platform_long.go has Script components that refer to the same script file. This is a good thing since any script changes we make to the script file will affect the behavior of both regular and long platforms.

Spawning platforms

The idea with the game is that it should be a simple endless runner. This means that the platform game objects cannot be placed in a collection in the editor. Instead we must spawn them dynamically:

  1. Open level.collection.
  2. Add two Factory components to the “controller” game object (right-click it and select Add Component then select Factory)
  3. Set the Id properties of the components to “platform_factory” and “platform_long_factory”.
  4. Set the Prototype property of “platform_factory” to the /level/objects/platform.go file.
  5. Set the Prototype property of “platform_long_factory” to the /level/objects/platform_long.go file.
  6. Save the file.
  7. Open the controller.script file, that manages the level.
  8. Modify the script so it contains the following and then save the file:
-- controller.script
go.property("speed", 360)

local grid = 460
local platform_heights = { 100, 200, 350 } -- <1>

function init(self)
    msg.post("ground/controller#controller", "set_speed", { speed = self.speed })
    self.gridw = 0
end

function update(self, dt) -- <2>
    self.gridw = self.gridw + self.speed * dt

    if self.gridw >= grid then
        self.gridw = 0

        -- Maybe spawn a platform at random height
        if math.random() > 0.2 then
            local h = platform_heights[math.random(#platform_heights)]
            local f = "#platform_factory"
            if math.random() > 0.5 then
                f = "#platform_long_factory"
            end

            local p = factory.create(f, vmath.vector3(1600, h, 0), nil, {}, 0.6)
            msg.post(p, "set_speed", { speed = self.speed })
        end
    end
end

1- Predefined values for the Y position to spawn platforms on. 2- The update() function is called once every frame and we use that to decide whether to spawn a regular or long platform at certain intervals (to avoid overlaps) and heights. It’s easy to experiment with various spawning algorithms to create different gameplay.

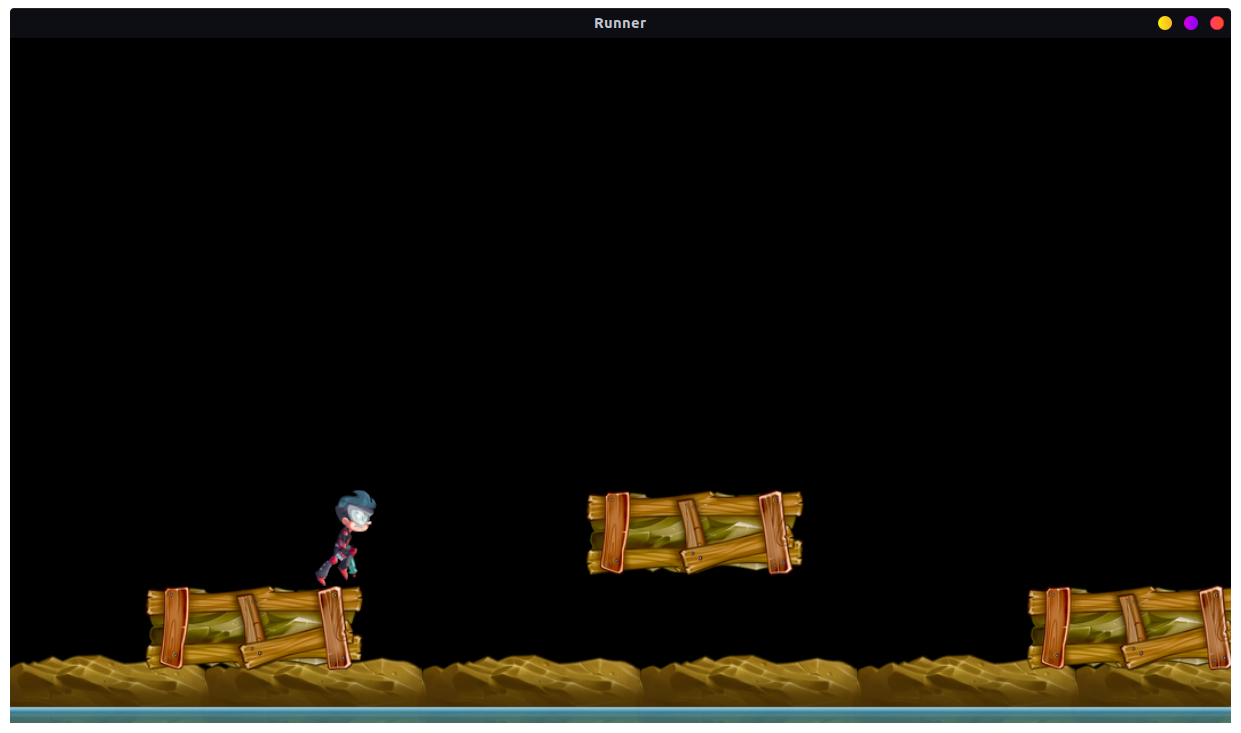

Now run the game (Project ▸ Build).

Wow, this is starting to turn into something (almost) playable…

Running the game

STEP 7 - Animation and death

The first thing we’re gonna do is to bring life to the hero character. Right now the poor thing is stuck in a run-loop and does not respond well to jumps or anything. The spine file that we added from the asset package actually contains a set of animations for just that.

  1. Open the hero.script file and add the following functions before the existing update() function:
    -- hero.script
    local function play_animation(self, anim)
        -- only play animations which are not already playing
        if self.anim ~= anim then
            -- tell the spine model to play the animation
            local anim_props = { blend_duration = 0.15 }
            spine.play_anim("#spinemodel", anim, go.PLAYBACK_LOOP_FORWARD, anim_props)
            -- remember which animation is playing
            self.anim = anim
        end
    end

    local function update_animation(self)
        -- make sure the right animation is playing
        if self.ground_contact then
            play_animation(self, hash("run"))
        else
            play_animation(self, hash("jump"))

        end
    end

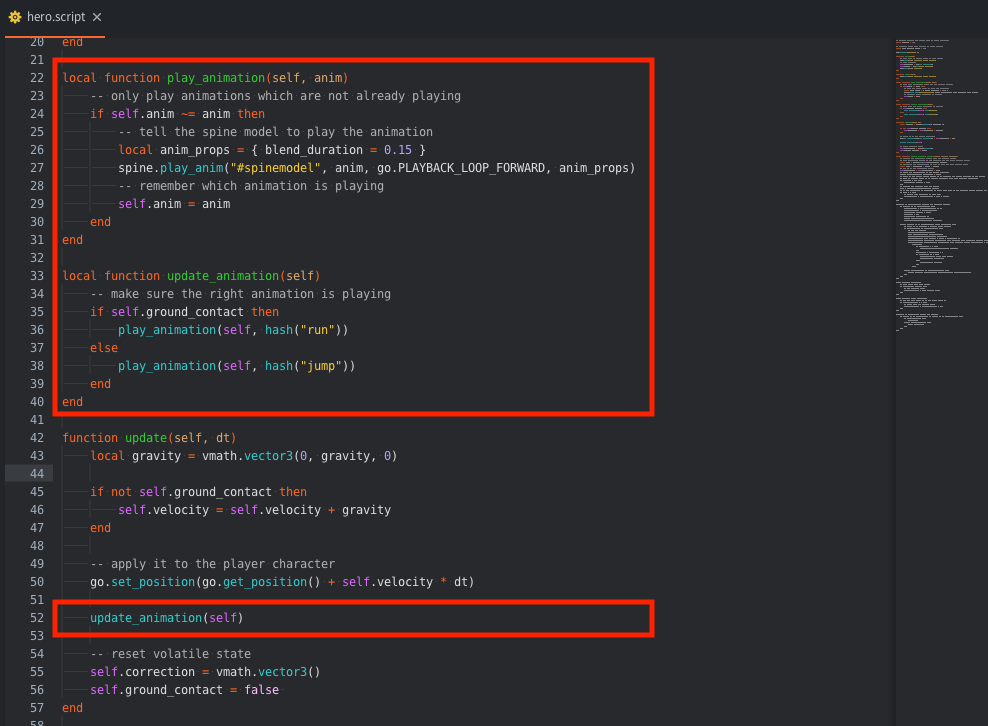

  1. Find the function update() and add a call to update_animation:
    ...
    -- apply it to the player character
    go.set_position(go.get_position() + self.velocity * dt)

    update_animation(self)
    ...

Insert hero code

Lua has “lexical scope” for local variables and is sensitive about the order that you place local functions in. The function update() calls the local functions update_animation() and play_animation() which means that the runtime must have seen the local functions to be able to call it. That is why we must put the functions before update(). If you switch order of the functions you will get an error. Note that this applies to local variables only. You can read more about Lua’s scoping rules and local functions on http://www.lua.org/pil/6.2.html

That’s all that’s needed to add jump and fall animations to the hero. If you run the game you will notice that it feels much better to play. You might also realize that the platforms unfortunately can push the hero off the screen. That is a side-effect of the collision handling but the remedy is easy–add violence and make the edges of the platforms dangerous!

  1. Drag spikes.png from the asset package to the “level/images” folder in the Assets pane.
  2. Open level.atlas and add the image (right-click and select Add Images)
  3. Open platform.go and add a few Sprite components. Set the Image to level.atlas and the Default Animation to “spikes”.
  4. Use the Move Tool and the Rotate Tool to place the spikes along the edges of the platform.
  5. To make the spikes render behind the platform, set the Z position of the spike sprites to -0.1.
  6. Add a new Collision Object component to the platforms (right-click the root in the Outline and select Add Component). Set the Group property to “danger”. Also set Mask to “hero”.
  7. Add a box shape to the Collision Object (right-click and select Add Shape) and use the Move Tool (Scene ▸ Move Tool) and the Scale Tool to place the shape so the hero character will collide with the “danger” object when hitting the platform from the side or from below.
  8. Save the file.

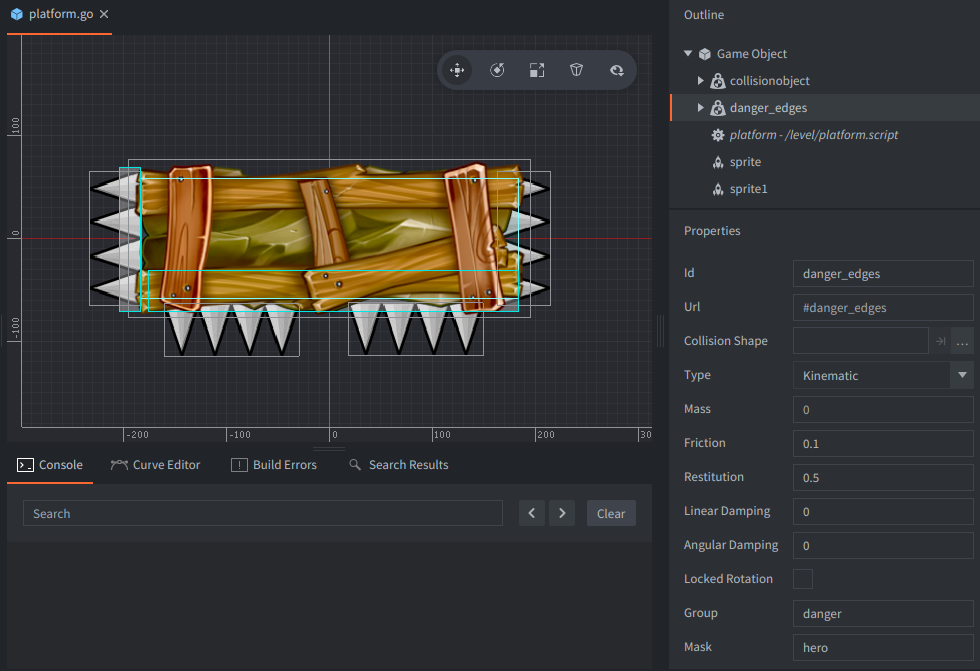

    Platform spikes

  9. Open hero.go, mark the Collision Object and add the “danger” name to the Mask property. Then save the file.

    Hero collision

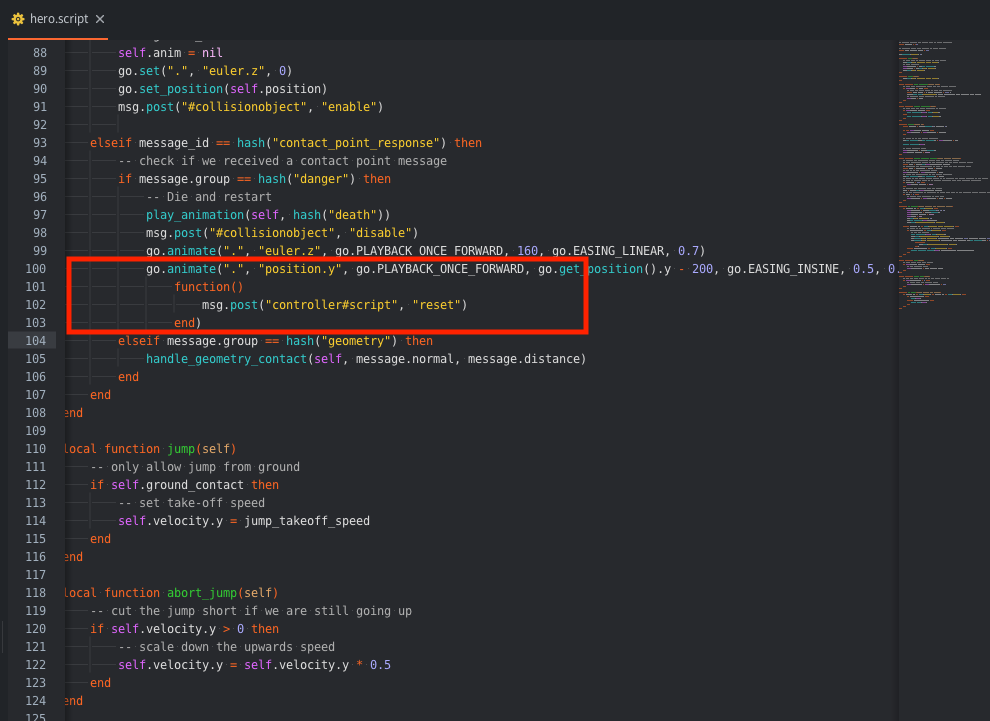

  10. Open hero.script and change the on_message() function so we get a reaction if the hero character collides with a “danger” egde:

    -- hero.script
    function on_message(self, message_id, message, sender)
        if message_id == hash("reset") then
            self.velocity = vmath.vector3(0, 0, 0)
            self.correction = vmath.vector3()
            self.ground_contact = false
            self.anim = nil
            go.set(".", "euler.z", 0)
            go.set_position(self.position)
            msg.post("#collisionobject", "enable")

        elseif message_id == hash("contact_point_response") then
            -- check if we received a contact point message
            if message.group == hash("danger") then
                -- Die and restart
                play_animation(self, hash("death"))
                msg.post("#collisionobject", "disable")
                -- <1>
                go.animate(".", "euler.z", go.PLAYBACK_ONCE_FORWARD, 160, go.EASING_LINEAR, 0.7)
                go.animate(".", "position.y", go.PLAYBACK_ONCE_FORWARD, go.get_position().y - 200, go.EASING_INSINE, 0.5, 0.2,
                    function()
                        msg.post("#", "reset")
                    end)
            elseif message.group == hash("geometry") then
                handle_geometry_contact(self, message.normal, message.distance)
            end
        end
    end

    1. Add rotation and fall movement to hero as it dies. This can be greatly improved!
  11. Change the init() function to send a “reset” message to initialize the object, then save the file:

    -- hero.script
    function init(self)
        -- this lets us handle input in this script
        msg.post(".", "acquire_input_focus")
        -- save position
        self.position = go.get_position()
        msg.post("#", "reset")
    end


STEP 8 - Resetting the level

If you try the game now it quickly becomes apparent that the reset mechanism doesn’t work. The hero reset is fine, but you can easily reset into a situation where you will instantly fall onto a platform edge and die again. What we want to do is to properly reset the whole level on death. Since the level is just a series of spawned platforms, we just need to track all spawned platforms and then delete them at reset:

  1. Open the controller.script file and edit the code to store the id’s of all spawned platforms:

     -- controller.script
     go.property("speed", 360)

     local grid = 460
     local platform_heights = { 100, 200, 350 }

     function init(self)
         msg.post("ground/controller#controller", "set_speed", { speed = self.speed })
         self.gridw = 0
         self.spawns = {} -- <1>
     end

     function update(self, dt)
         self.gridw = self.gridw + self.speed * dt

         if self.gridw >= grid then
             self.gridw = 0

             -- Maybe spawn a platform at random height
             if math.random() > 0.2 then
                 local h = platform_heights[math.random(#platform_heights)]
                 local f = "#platform_factory"
                 if math.random() > 0.5 then
                     f = "#platform_long_factory"
                 end

                 local p = factory.create(f, vmath.vector3(1600, h, 0), nil, {}, 0.6)
                 msg.post(p, "set_speed", { speed = self.speed })
                 table.insert(self.spawns, p) -- <1>
             end
         end
     end

     function on_message(self, message_id, message, sender)
         if message_id == hash("reset") then -- <2>
             -- Tell the hero to reset.
             msg.post("hero#hero", "reset")
             -- Delete all platforms
             for i,p in ipairs(self.spawns) do
                 go.delete(p)
             end
             self.spawns = {}
         elseif message_id == hash("delete_spawn") then -- <3>
             for i,p in ipairs(self.spawns) do
                 if p == message.id then
                     table.remove(self.spawns, i)
                     go.delete(p)
                 end
             end
         end
     end

    1. We use a table to store all spawned platforms
    2. The “reset” message deletes all platforms stored in the table
    3. The “delete_spawn” message deletes a particular platform and removes it from the table
  2. Save the file.
  3. Open platform.script and modify it so that instead of just deleting a platform that has reached the leftmost edge, send a message to the level controller asking to remove the platform:

     -- platform.script
     ...
     if pos.x < -500 then
         msg.post("/level/controller#controller", "delete_spawn", { id = go.get_id() })
     end
     ...

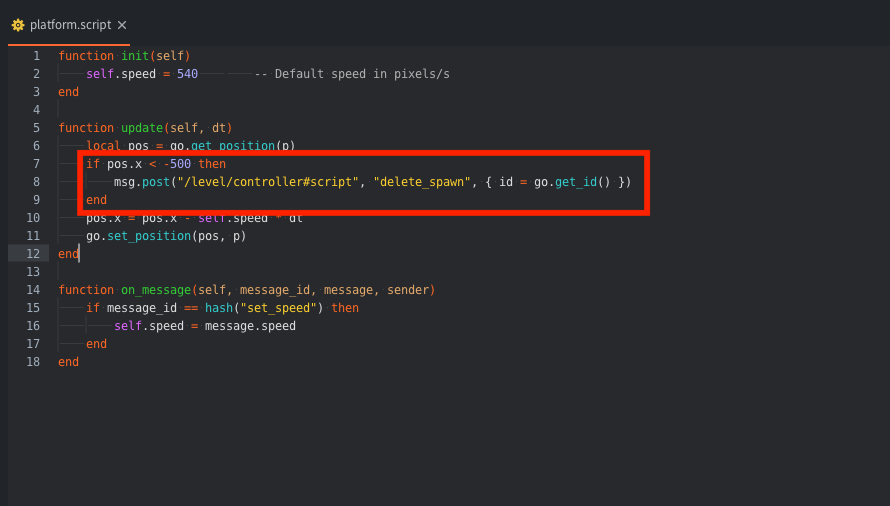

    Insert platform code

  4. Save the file.
  5. Open hero.script. Now, the last thing we need to do is to tell the level to do the reset. We have moved the message asking the hero to reset to the level controller script. It makes sense to centralize control of resetting like this because it allows us to, for instance, introduce a longer timed death sequence with greater ease:
-- hero.script
...
go.animate(".", "position.y", go.PLAYBACK_ONCE_FORWARD, go.get_position().y - 200, go.EASING_INSINE, 0.5, 0.2,
    function()
        msg.post("controller#controller", "reset")
    end)
...

Insert hero code

And now the main restart-die loop is in place!

Next up - something to live for: coins!

STEP 9 - Coins to collect

The idea is to put coins in the level for the player to collect. The first questions to ask is how to put them into the level. We can, for instance, develop a spawning scheme that is somehow in tune with the platform spawning algorithm. However, we chose a much easier approach in the end and just have the platforms themselves spawn coins:

  1. Drag the coin.png image from the asset package to “level/images” in the Assets pane.
  2. Open level.atlas and add the image (right-click and select Add Images).
  3. Create a Game Object file named coin.go in the level folder (right-click level in the Assets pane and select New ▸ Game Object File).
  4. Open coin.go and add a Sprite component (right-click and select Add Component in the Outline). Set the Image to level.atlas and Default Animation to “coin”.
  5. Add a Collision Object (right-click in the Outline and select Add Component) and add a Sphere shape that covers the image (right-click the component and select Add Shape).
  6. Use the Move Tool (Scene ▸ Move Tool) and the Scale Tool to make the sphere cover the coin image.
  7. Set the collision object Type to “Kinematic”, its Group to “pickup” and its Mask to “hero”.
  8. Open hero.go and add “pickup” to the Collision Object component’s Mask property, then save the file.
  9. Create a new script file coin.script (right-click level in the Assets pane and select New ▸ Script File). Replace the template code with the following:

     -- coin.script
     function init(self)
         self.collected = false
     end

     function on_message(self, message_id, message, sender)
         if self.collected == false and message_id == hash("collision_response") then
             self.collected = true
             msg.post("#sprite", "disable")
         elseif message_id == hash("start_animation") then
             pos = go.get_position()
             go.animate(go.get_id(), "position.y", go.PLAYBACK_LOOP_PINGPONG, pos.y + 24, go.EASING_INOUTSINE, 0.75, message.delay)
         end
     end

  10. Add the script file as a Script component to the coin object (right-click the root in Outline and select Add Component from File).

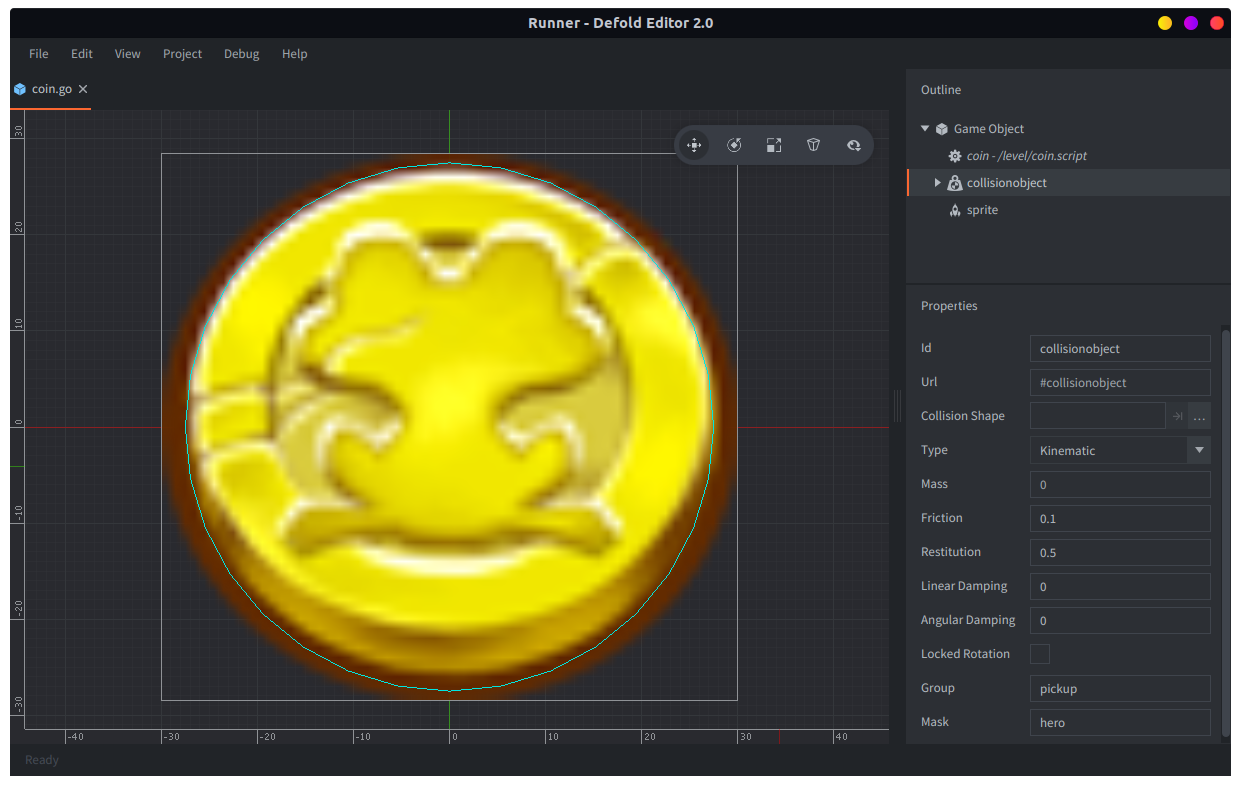

    Coin game object

The plan is to spawn the coins from the platform objects so put factories for the coins in platform.go and platform_long.go.

  1. Open platform.go and add a Factory component (right-click in the Outline and select Add Component).
  2. Set the Id of the Factory to “coin_factory” and set its Prototype to the file coin.go.
  3. Now open platform_long.go and create an identical Factory component.
  4. Save the two files.

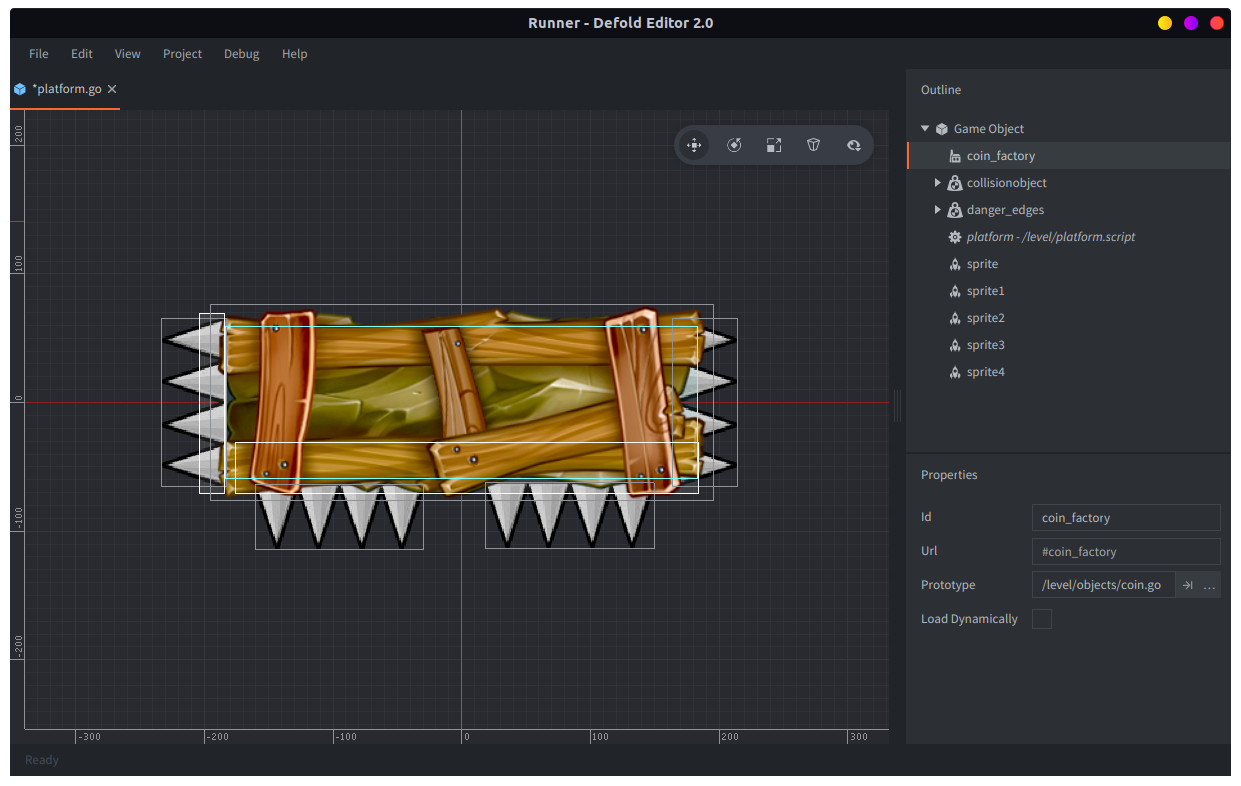

Coin factory

Now we need to modify platform.script so it spawns and deletes the coins:

-- platform.script
function init(self)
    self.speed = 540     -- Default speed in pixels/s
    self.coins = {}
end

function final(self)
    for i,p in ipairs(self.coins) do
        go.delete(p)
    end
end

function update(self, dt)
    local pos = go.get_position()
    if pos.x < -500 then
        msg.post("/level/controller#controller", "delete_spawn", { id = go.get_id() })
    end
    pos.x = pos.x - self.speed * dt
    go.set_position(pos)
end

function create_coins(self, params)
    local spacing = 56
    local pos = go.get_position()
    local x = pos.x - params.coins * (spacing*0.5) - 24
    for i = 1, params.coins do
        local coin = factory.create("#coin_factory", vmath.vector3(x + i * spacing , pos.y + 64, 1))
        msg.post(coin, "set_parent", { parent_id = go.get_id() }) -- <1>
        msg.post(coin, "start_animation", { delay = i/10 }) -- <2>
        table.insert(self.coins, coin)
    end
end

function on_message(self, message_id, message, sender)
    if message_id == hash("set_speed") then
        self.speed = message.speed
    elseif message_id == hash("create_coins") then
        create_coins(self, message)
    end
end
  1. By setting the parent of the spawned coin to the platform it will move along with the platform.
  2. The animation causes the coins to dance up and down, relative to the platform that is now the parent of the coins.

Parent-child relations are strictly a modification of the scene graph. A child will be transformed (moved, scaled or rotated) along with its parent. If you need additional “ownership” relations between game objects, you need to track that specifically in code.

The last step in this tutorial is to add a couple of lines to controller.script:

-- controller.script
...
local platform_heights = { 100, 200, 350 }
local coins = 3 -- <1>
...
  1. The number of coins to spawn on a regular platform.
-- controller.script
...
local coins = coins
if math.random() > 0.5 then
    f = "#platform_long_factory"
    coins = coins * 2 -- Twice the number of coins on long platforms
end
...
-- controller.script
...
msg.post(p, "set_speed", { speed = self.speed })
msg.post(p, "create_coins", { coins = coins })
table.insert(self.spawns, p)
...

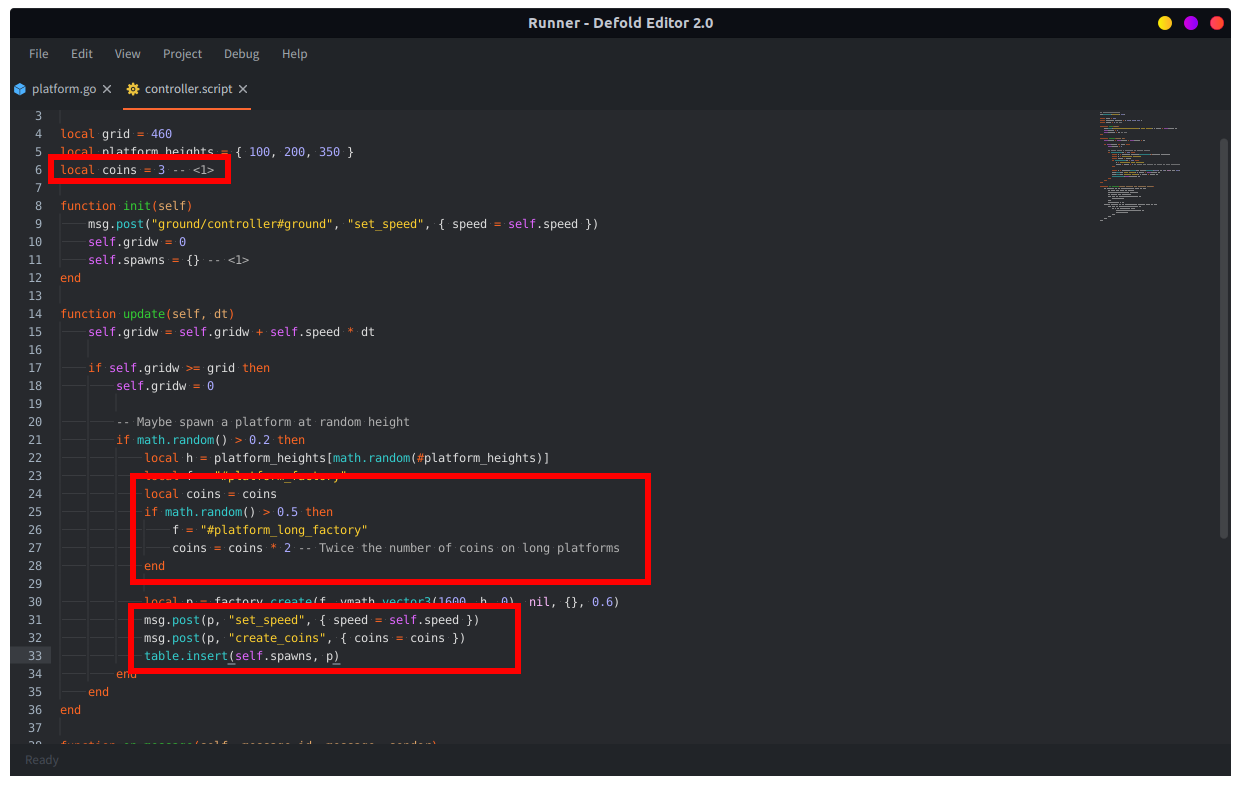

Insert controller code

And now we have a simple, but functional game! If you make it this far you might want to continue on your own and add the following:

  1. Scoring and life counters
  2. Particle effects for the pickups and death
  3. Nice background imagery

Download the completed version of the project here

That concludes this introductory tutorial. Now go ahead and dive into Defold. We have lots of manuals and tutorials prepared to guide you, and if you get stuck, your’re welcome to the forum.

Happy Defolding!

Did you spot an error or do you have a suggestion? Please let us know on GitHub!

GITHUB
