GUI color


Setup

The example shows how to change the color of GUI nodes using gui.set_color() and gui.animate().

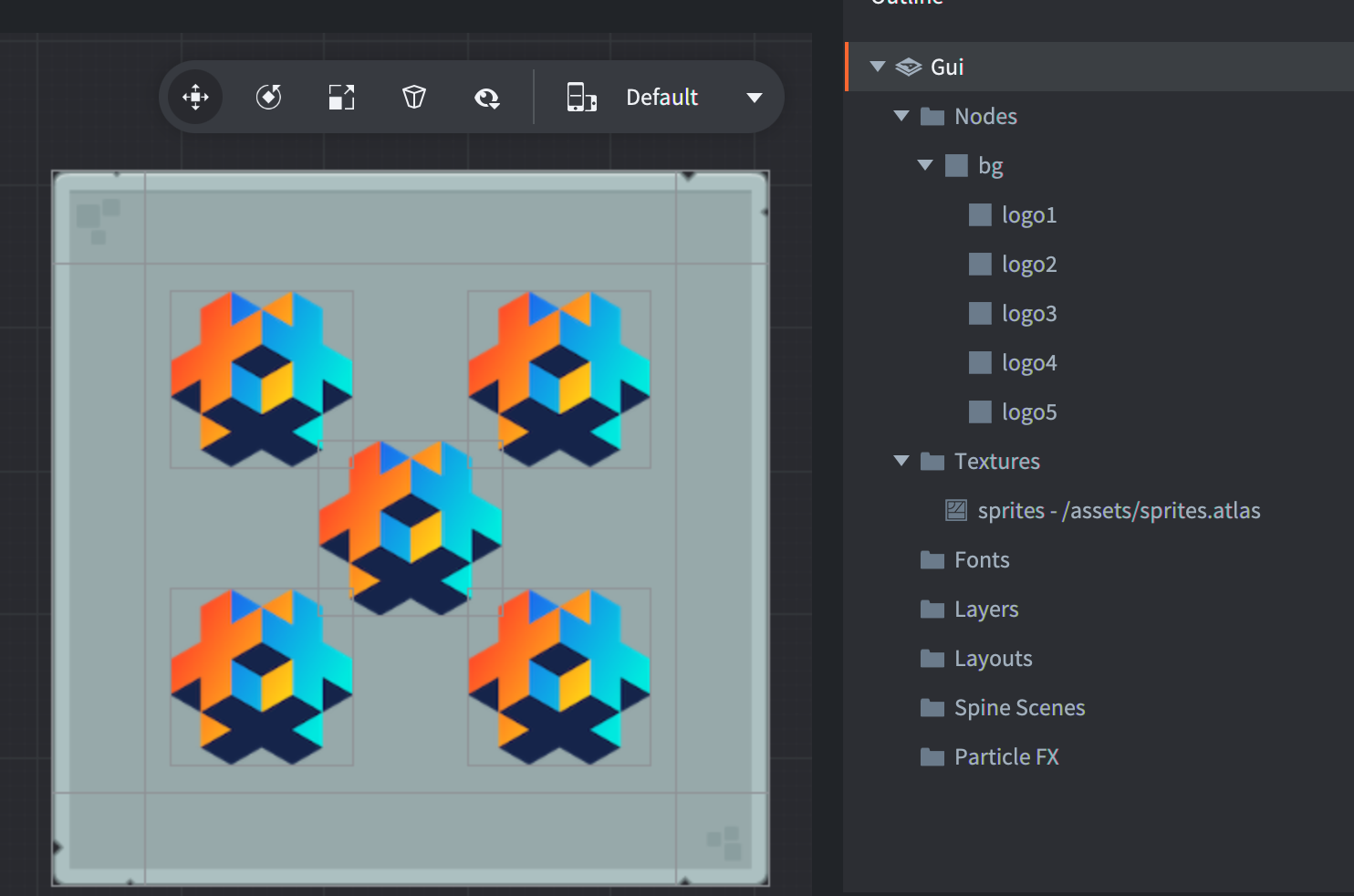

color

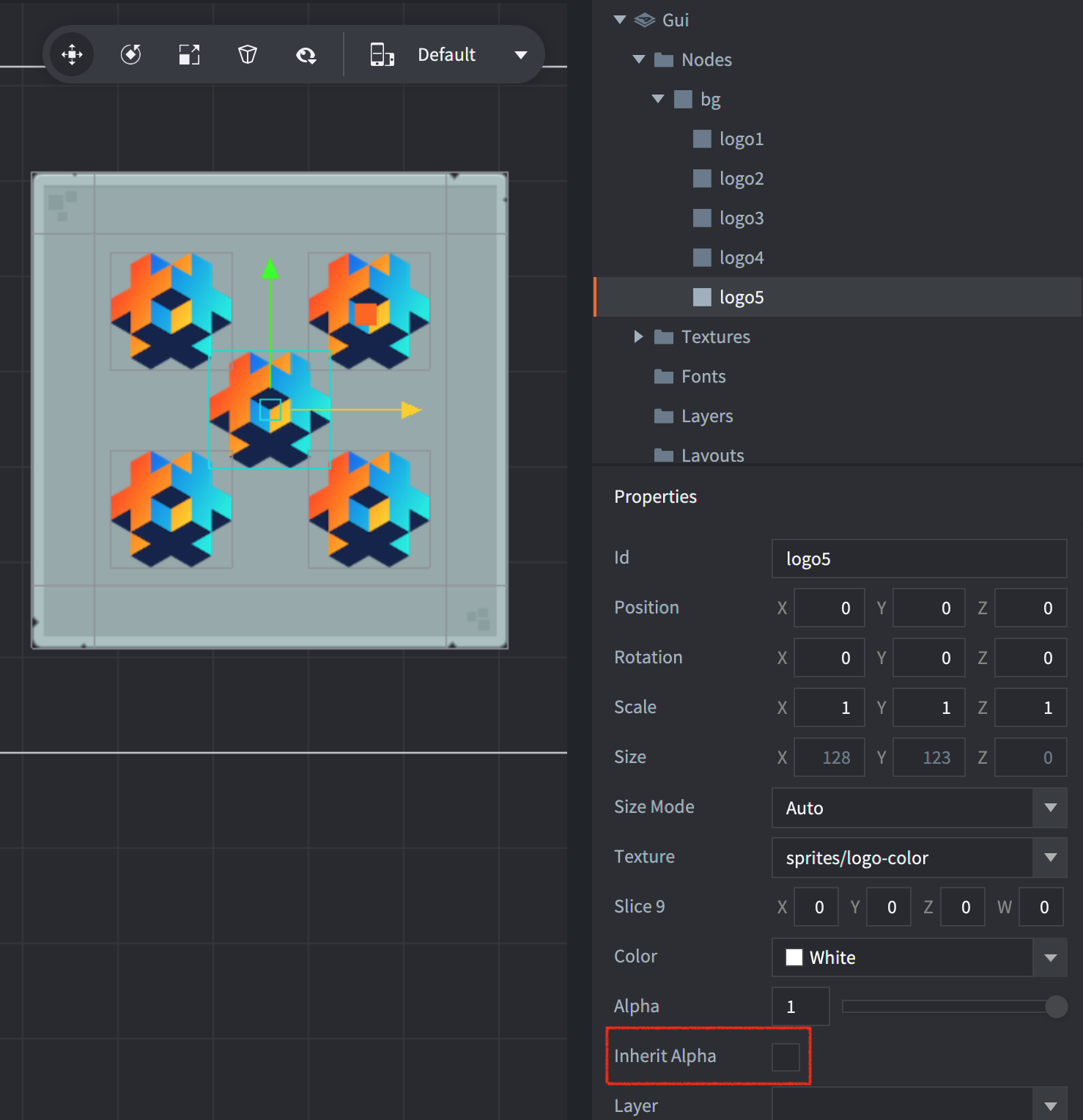

Nodes will normally inherit the alpha of parent nodes, unless the Inherit Alpha checkbox is unchecked.

inherit alpha

Scripts

color.gui_script

function init(self)
    gui.animate(gui.get_node("logo1"), gui.PROP_COLOR, vmath.vector4(1, 0, 0, 1), gui.EASING_INOUTQUAD, 3, 0, nil, gui.PLAYBACK_LOOP_PINGPONG) -- <1>
    gui.animate(gui.get_node("logo2"), "color.x", 0, gui.EASING_INOUTQUAD, 3, 0, nil, gui.PLAYBACK_LOOP_PINGPONG) -- <2>
    gui.animate(gui.get_node("bg"), "color.w", 0, gui.EASING_INOUTQUAD, 4, 0, nil, gui.PLAYBACK_LOOP_PINGPONG) -- <3>

    gui.set_color(gui.get_node("logo3"), vmath.vector4(1, 0, 0, 1)) -- <4>

end

--[[
1. x,y,z,w -> r,g,b,a. Keep read and alpha. Animate green and blue to 0.
2. x = red. Animate the red color component to 0.
3. w = alpha. Animate the alpha color component to 0. All children which inherit alpha will be affected.
4. Set the color of the node.
--]]

If you want to play with these examples, you can get the project on Github.

Do you want to see more examples? Why not write a few yourself and submit a pull request? We love contributions.
