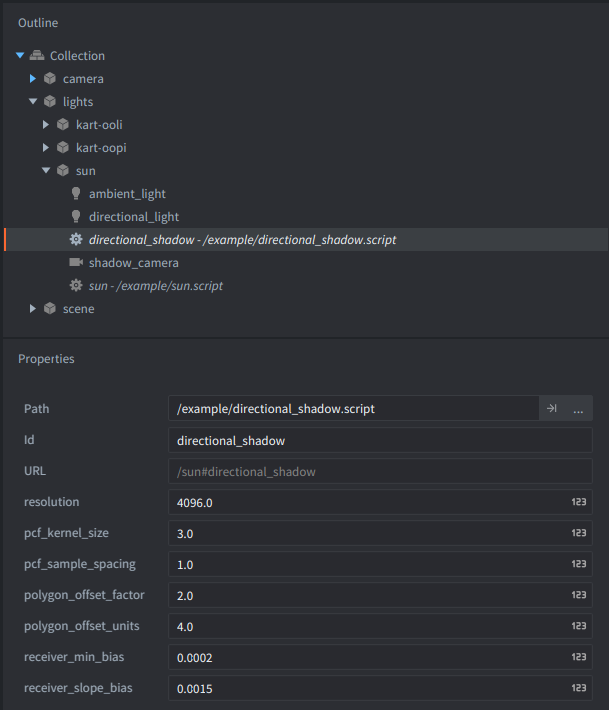

-- Shadow-map dimensions. Choose a value appropriate for the target hardware.
go.property("resolution", 4096)

-- Fixed PCF kernel width - possible values:
--     1 = one hard depth comparison, no PCF filtering
--     3 = 3x3 PCF kernel, 9 depth comparisons
--     5 = 5x5 PCF kernel, 25 depth comparisons
go.property("pcf_kernel_size", 3)

-- Distance between neighboring PCF samples, measured in shadow-map texels.
-- This changes the filter footprint but not the number of samples.
go.property("pcf_sample_spacing", 1.0)

-- Caster-side polygon offset applied while writing the shadow depth map.
go.property("polygon_offset_factor", 2.0)
go.property("polygon_offset_units", 4.0)

-- Receiver-side depth comparison bias used by the fragment shader.
go.property("receiver_min_bias", 0.0002)
go.property("receiver_slope_bias", 0.0015)

function init(self)
    -- Send a message to the render socket to configure the parameters for shadows:
    msg.post("@render:", "set_directional_shadow", {
        camera = msg.url("#shadow_camera"),
        resolution = self.resolution,
        pcf_kernel_size = self.pcf_kernel_size,
        pcf_sample_spacing = self.pcf_sample_spacing,
        polygon_offset_factor = self.polygon_offset_factor,
        polygon_offset_units = self.polygon_offset_units,
        receiver_min_bias = self.receiver_min_bias,
        receiver_slope_bias = self.receiver_slope_bias,
    })
end

local M = {}

--[[
Directional shadow mapping for a custom Defold render script.
The module for shadow mapping renders models twice:
1. Shadow depth pass - Models are rendered from the directional light camera into a depth texture.
2. Main scene pass - Models are rendered from the display camera with a receiver material that samples checks if a fragment is shadowed.

Public integration functions:
M.init() in init()
M.on_message() in on_message()
M.render_depth() and M.render_models(renders) in update()
M.final() in final()
--]]

-- Message ID for configuring shadow mapping parameters.
local MSG_SET_DIRECTIONAL_SHADOW = hash("set_directional_shadow")

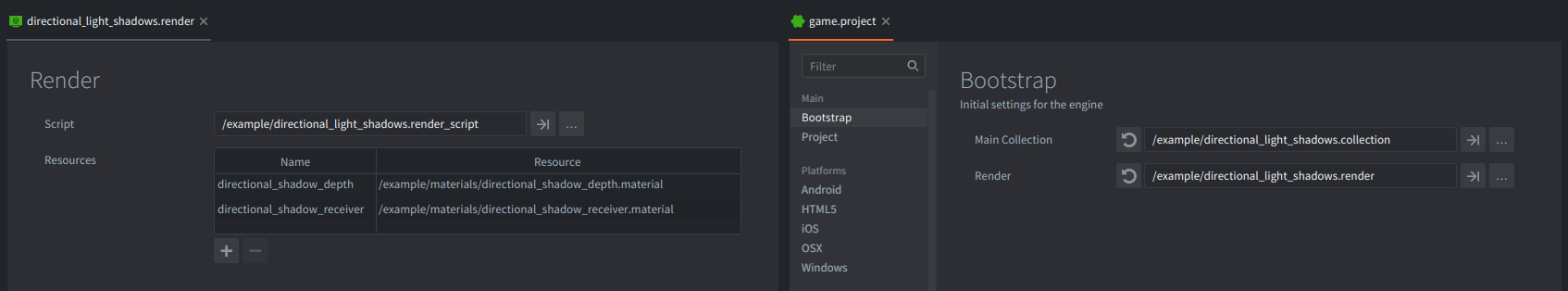

-- Render resources declared in directional_light_shadows.render.
local DEPTH_MATERIAL = "directional_shadow_depth"
local RECEIVER_MATERIAL = "directional_shadow_receiver"

-- Sampler declared by directional_shadow_receiver.material.
local SHADOW_SAMPLER = "shadow_map"

-- Supported PCF kernel widths.
-- A width of 1 performs one hard depth comparison and therefore means that PCF filtering is disabled.
local PCF_KERNEL_HARD = 1
local PCF_KERNEL_3X3 = 3
local PCF_KERNEL_5X5 = 5
local DEFAULT_PCF_KERNEL_SIZE = PCF_KERNEL_3X3

-- Distance between neighboring PCF samples, measured in shadow-map texels.
-- This changes the filter footprint but not the number of texture samples.
local DEFAULT_PCF_SAMPLE_SPACING = 1.0

-- Caster-side depth bias.
-- These values affect the depth written into the shadow map through polygon offset.
local DEFAULT_POLYGON_OFFSET_FACTOR = 2.0
local DEFAULT_POLYGON_OFFSET_UNITS = 4.0

-- Receiver-side comparison bias. These values are passed to the fragment shader
-- and used when comparing receiver depth with stored shadow-map depth.
local DEFAULT_RECEIVER_MIN_BIAS = 0.0002
local DEFAULT_RECEIVER_SLOPE_BIAS = 0.0015

-- Validate the fixed PCF implementations available in shadows.glsl.
local function validate_pcf_kernel_size(kernel_size)
    assert(kernel_size == PCF_KERNEL_HARD
            or kernel_size == PCF_KERNEL_3X3
            or kernel_size == PCF_KERNEL_5X5,
        "pcf_kernel_size must be 1, 3, or 5")
    return kernel_size
end

-- Convert light clip/NDC coordinates from -1..1 into texture coordinates in the 0..1 range.
-- This is commonly called a "bias matrix", but it is unrelated to the depth bias used to prevent shadow acne.
local function create_clip_to_texture_matrix()
    local matrix = vmath.matrix4()
    matrix.c0 = vmath.vector4(0.5, 0.0, 0.0, 0.0)
    matrix.c1 = vmath.vector4(0.0, 0.5, 0.0, 0.0)
    matrix.c2 = vmath.vector4(0.0, 0.0, 0.5, 0.0)
    matrix.c3 = vmath.vector4(0.5, 0.5, 0.5, 1.0)
    return matrix
end

-- Create a depth-only render target. The depth attachment is also exposed as a texture
-- because it is sampled by the receiver fragment shader during the main scene pass.
local function create_depth_target(resolution)
    local depth_params = {
        format = graphics.TEXTURE_FORMAT_DEPTH,    -- Depth only format.
        width = resolution,    -- Resolution of the depth target (square)
        height = resolution,

        -- The shader performs explicit depth comparisons for PCF.
        -- Nearest filtering returns the exact stored depth for each selected texel.
        -- Linear filtering would interpolate raw depth values before comparison,
        -- which is not equivalent to filtering comparison results.
        min_filter = graphics.TEXTURE_FILTER_NEAREST,
        mag_filter = graphics.TEXTURE_FILTER_NEAREST,

        -- Clamp the texture coordinates to the edge of the texture.
        u_wrap = graphics.TEXTURE_WRAP_CLAMP_TO_EDGE,
        v_wrap = graphics.TEXTURE_WRAP_CLAMP_TO_EDGE,

        -- The depth texture is used as a sampler in the receiver fragment shader.
        flags = render.TEXTURE_BIT,
    }

    return render.render_target("directional_shadow_map", { [graphics.BUFFER_TYPE_DEPTH_BIT] = depth_params })
end

-- Replace the depth target when the configured resolution changes.
local function recreate_depth_target(context, resolution)
    -- Delete the existing depth target if it exists.
    if context.target then
        render.delete_render_target(context.target)
    end

    -- Create a new depth target with the new resolution.
    context.target = create_depth_target(resolution)
    context.resolution = resolution

    -- The receiver shader uses this value to convert PCF offsets expressed in
    -- texels into normalized texture-coordinate offsets.
    context.constants.shadow_texel_size = vmath.vector4( 1.0 / resolution, 1.0 / resolution, 0.0, 0.0 )
end

-- Pack four scalar shadow settings into one vec4 material constant:
-- x = PCF kernel width: 1, 3, or 5 (1 means one hard comparison without filtering).
-- y = distance between PCF samples in shadow-map texels.
-- z = minimum receiver-side depth bias.
-- w = slope/normal-dependent receiver-side depth bias.
local function update_shadow_parameters(context)
    context.constants.shadow_params = vmath.vector4(
        context.pcf_kernel_size,
        context.pcf_sample_spacing,
        context.receiver_min_bias,
        context.receiver_slope_bias
    )
end

-- Read the current light camera matrices and build the matrix used by the receiver vertex shader.
local function update_shadow_matrices(context)
    -- Get the view and projection matrices from the light camera.
    context.shadow_view = camera.get_view(context.camera)
    context.shadow_projection = camera.get_projection(context.camera)

    -- World space -> light view space -> light clip space.
    context.shadow_frustum = context.shadow_projection * context.shadow_view

    -- World space -> light clip space -> shadow texture space.
    context.constants.mtx_shadow = context.clip_to_texture * context.shadow_frustum
end

-- Preserve the display camera's culling options
-- while supplying the shadow constant buffer to the receiver material.
local function create_receiver_draw_options(world_options, constants)
    local options = {
        constants = constants,
    }

    if not world_options then
        return options
    end

    if world_options.frustum then
        options.frustum = world_options.frustum
    end

    if world_options.frustum_planes then
        options.frustum_planes = world_options.frustum_planes
    end

    return options
end


-- Create the module state.
function M.init()
    local context = {
        clip_to_texture = create_clip_to_texture_matrix(),
        constants = render.constant_buffer(),

        target = nil,
        resolution = nil,
        camera = nil,

        shadow_view = nil,
        shadow_projection = nil,
        shadow_frustum = nil,

        pcf_kernel_size = DEFAULT_PCF_KERNEL_SIZE,
        pcf_sample_spacing = DEFAULT_PCF_SAMPLE_SPACING,

        polygon_offset_factor = DEFAULT_POLYGON_OFFSET_FACTOR,
        polygon_offset_units = DEFAULT_POLYGON_OFFSET_UNITS,

        receiver_min_bias = DEFAULT_RECEIVER_MIN_BIAS,
        receiver_slope_bias = DEFAULT_RECEIVER_SLOPE_BIAS,
    }

    update_shadow_parameters(context)
    return context
end


-- Release the shadow render target owned by this module.
function M.final(context)
    if context.target then
        render.delete_render_target(context.target)
        context.target = nil
    end
end


-- Handle the set_directional_shadow configuration message.
function M.on_message(context, message_id, message)
    if message_id ~= MSG_SET_DIRECTIONAL_SHADOW then
        return false
    end

    assert(message.camera, "set_directional_shadow requires message.camera")
    assert(message.resolution and message.resolution > 0, "set_directional_shadow requires a positive message.resolution")

    context.camera = message.camera

    -- Shadow textures require integer dimensions. Fractional input is truncated.
    local resolution = math.max(1, math.floor(message.resolution))
    if not context.target or context.resolution ~= resolution then
        recreate_depth_target(context, resolution)
    end

    -- Validate and update the PCF kernel size and sample spacing.
    context.pcf_kernel_size = validate_pcf_kernel_size(message.pcf_kernel_size or context.pcf_kernel_size)
    context.pcf_sample_spacing = message.pcf_sample_spacing or context.pcf_sample_spacing
    assert(context.pcf_sample_spacing >= 0.0, "pcf_sample_spacing must be greater than or equal to 0")

    -- Validate and update the polygon offset factor and units.
    context.polygon_offset_factor = message.polygon_offset_factor or context.polygon_offset_factor
    context.polygon_offset_units = message.polygon_offset_units or context.polygon_offset_units
    context.receiver_min_bias = message.receiver_min_bias or context.receiver_min_bias
    context.receiver_slope_bias = message.receiver_slope_bias or context.receiver_slope_bias

    update_shadow_parameters(context)
    return true
end


-- Render shadow casters into the depth texture from the light camera.
function M.render_depth(context, model_predicate)
    if not context.target or not context.camera then
        return
    end

    update_shadow_matrices(context)

    render.set_render_target(context.target)
    render.set_viewport(0, 0, context.resolution, context.resolution)

    -- Clear any selected Camera component and provide the shadow camera matrices
    -- explicitly for this pass.
    render.set_camera()
    render.set_view(context.shadow_view)
    render.set_projection(context.shadow_projection)

    -- The target contains only depth; no color output is needed.
    render.set_color_mask(false, false, false, false)
    render.set_depth_mask(true)
    render.set_depth_func(graphics.COMPARE_FUNC_LEQUAL)
    render.enable_state(graphics.STATE_DEPTH_TEST)

    render.enable_state(graphics.STATE_CULL_FACE)
    render.set_cull_face(graphics.FACE_TYPE_BACK)
    render.disable_state(graphics.STATE_BLEND)

    -- Caster-side bias. Increase these values to reduce remaining shadow acne,
    -- but reduce them if shadows visibly detach from their casters.
    render.enable_state(graphics.STATE_POLYGON_OFFSET_FILL)
    render.set_polygon_offset(
        context.polygon_offset_factor,
        context.polygon_offset_units
    )

    -- A depth value of 1.0 represents the far end of the depth range.
    render.clear({
        [graphics.BUFFER_TYPE_DEPTH_BIT] = 1.0,
    })

    -- Override all caster materials with the minimal depth material.
    render.enable_material(DEPTH_MATERIAL)
    render.draw(model_predicate, {
        frustum = context.shadow_frustum,
        frustum_planes = render.FRUSTUM_PLANES_ALL,
    })
    render.disable_material()

    -- Restore state that must not leak into the main scene pass.
    render.set_polygon_offset(0.0, 0.0)
    render.disable_state(graphics.STATE_POLYGON_OFFSET_FILL)
    render.set_color_mask(true, true, true, true)
    render.set_render_target(render.RENDER_TARGET_DEFAULT)

    -- The main render script should restore the display camera and viewport next.
end


-- Render normal models with the shadow receiver material and depth texture.
function M.render_models(context, model_predicate, world_options)
    if not context.target or not context.camera then
        render.draw(model_predicate, world_options)
        return
    end

    -- Enable the shadow sampler and bind the shadow target's depth attachment to the receiver material.
    render.enable_texture(
        SHADOW_SAMPLER,
        context.target,
        graphics.BUFFER_TYPE_DEPTH_BIT
    )
    render.enable_material(RECEIVER_MATERIAL)

    -- Draw the model predicate using the display camera's frustum while supplying mtx_shadow, shadow_params, and shadow_texel_size.
    render.draw(
        model_predicate,
        create_receiver_draw_options(world_options, context.constants)
    )

    -- Restore the previous material and texture bindings.
    render.disable_material()
    render.disable_texture(SHADOW_SAMPLER)
end


return M

-- Copyright 2020-2026 The Defold Foundation
-- Copyright 2014-2020 King
-- Copyright 2009-2014 Ragnar Svensson, Christian Murray
-- Licensed under the Defold License version 1.0 (the "License"); you may not use
-- this file except in compliance with the License.
--
-- You may obtain a copy of the License, together with FAQs at
-- https://www.defold.com/license
--
-- Unless required by applicable law or agreed to in writing, software distributed
-- under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR
-- CONDITIONS OF ANY KIND, either express or implied. See the License for the
-- specific language governing permissions and limitations under the License.

-- Add module with directional-shadow resources and passes functions:
local shadow_mapping = require("example.shadow_mapping")

--
-- message constants
--
local MSG_CLEAR_COLOR =         hash("clear_color")
local MSG_WINDOW_RESIZED =      hash("window_resized")
local MSG_SET_VIEW_PROJ =       hash("set_view_projection")
local MSG_SET_CAMERA_PROJ =     hash("use_camera_projection")
local MSG_USE_STRETCH_PROJ =    hash("use_stretch_projection")
local MSG_USE_FIXED_PROJ =      hash("use_fixed_projection")
local MSG_USE_FIXED_FIT_PROJ =  hash("use_fixed_fit_projection")

local DEFAULT_NEAR = -1
local DEFAULT_FAR =   1
local DEFAULT_ZOOM =  1

--
-- projection that centers content with maintained aspect ratio and optional zoom
--
local function get_fixed_projection(camera, state)
    camera.zoom = camera.zoom or DEFAULT_ZOOM
    local projected_width = state.window_width / camera.zoom
    local projected_height = state.window_height / camera.zoom
    local left = -(projected_width - state.width) / 2
    local bottom = -(projected_height - state.height) / 2
    local right = left + projected_width
    local top = bottom + projected_height
    return vmath.matrix4_orthographic(left, right, bottom, top, camera.near, camera.far)
end
--
-- projection that centers and fits content with maintained aspect ratio
--
local function get_fixed_fit_projection(camera, state)
    camera.zoom = math.min(state.window_width / state.width, state.window_height / state.height)
    return get_fixed_projection(camera, state)
end
--
-- projection that stretches content
--
local function get_stretch_projection(camera, state)
    return vmath.matrix4_orthographic(0, state.width, 0, state.height, camera.near, camera.far)
end
--
-- projection for gui
--
local function get_gui_projection(camera, state)
    return vmath.matrix4_orthographic(0, state.window_width, 0, state.window_height, camera.near, camera.far)
end

local function update_clear_color(state, color)
    if color then
        state.clear_buffers[graphics.BUFFER_TYPE_COLOR0_BIT] = color
    end
end

local function update_camera(camera, state)
    if camera.projection_fn then
        camera.proj = camera.projection_fn(camera, state)
        camera.options.frustum = camera.proj * camera.view
    end
end

local function update_state(state)
    state.window_width = render.get_window_width()
    state.window_height = render.get_window_height()
    state.valid = state.window_width > 0 and state.window_height > 0
    if not state.valid then
        return false
    end
    -- Make sure state updated only once when resize window
    if state.window_width == state.prev_window_width and state.window_height == state.prev_window_height then
        return true
    end
    state.prev_window_width = state.window_width
    state.prev_window_height = state.window_height
    state.width = render.get_width()
    state.height = render.get_height()
    for _, camera in pairs(state.cameras) do
        update_camera(camera, state)
    end
    return true
end

local function init_camera(camera, projection_fn, near, far, zoom)
    camera.view = vmath.matrix4()
    camera.near = near == nil and DEFAULT_NEAR or near
    camera.far = far == nil and DEFAULT_FAR or far
    camera.zoom = zoom == nil and DEFAULT_ZOOM or zoom
    camera.projection_fn = projection_fn
end

local function create_predicates(...)
    local arg = {...}
    local predicates = {}
    for _, predicate_name in pairs(arg) do
        predicates[predicate_name] = render.predicate({predicate_name})
    end
    return predicates
end

local function create_camera(state, name, is_main_camera)
    local camera = {}
    camera.options = {}
    state.cameras[name] = camera
    if is_main_camera then
        state.main_camera = camera
    end
    return camera
end

local function create_state()
    local state = {}
    local color = vmath.vector4(0, 0, 0, 0)
    color.x = sys.get_config_number("render.clear_color_red", 0)
    color.y = sys.get_config_number("render.clear_color_green", 0)
    color.z = sys.get_config_number("render.clear_color_blue", 0)
    color.w = sys.get_config_number("render.clear_color_alpha", 0)
    state.clear_buffers = {
        [graphics.BUFFER_TYPE_COLOR0_BIT] = color,
        [graphics.BUFFER_TYPE_DEPTH_BIT] = 1,
        [graphics.BUFFER_TYPE_STENCIL_BIT] = 0
    }
    state.cameras = {}
    return state
end

local function set_camera_world(state, shadows)
    local camera_components = camera.get_cameras()

    -- Select the last enabled display camera, but never the
    -- enabled Camera component used to define the shadow volume.
    if #camera_components > 0 then
        for i = #camera_components, 1, -1 do
            local camera_url = camera_components[i]
            if camera_url ~= shadows.camera and camera.get_enabled(camera_url) then
                local camera_component = state.cameras.camera_component
                camera_component.camera = camera_url
                render.set_camera(camera_component.camera, { use_frustum = true })
                -- The frustum will be overridden by the render.set_camera call,
                -- so we don't need to return anything here other than an empty table.
                return camera_component.options
            end
        end
    end

    -- If no active camera was found, we use the default main "camera world" camera
    local camera_world = state.cameras.camera_world
    render.set_view(camera_world.view)
    render.set_projection(camera_world.proj)
    return camera_world.options
end

local function reset_camera_world(state)
    -- unbind the camera if a camera component is used
    if state.cameras.camera_component.camera then
        state.cameras.camera_component.camera = nil
        render.set_camera()
    end
end

function init(self)
    self.predicates = create_predicates("tile", "gui", "particle", "model", "debug_text")

    -- Create the directional-shadow module state.
    self.shadows = shadow_mapping.init()

    -- default is stretch projection. copy from builtins and change for different projection
    -- or send a message to the render script to change projection:
    -- msg.post("@render:", "use_stretch_projection", { near = -1, far = 1 })
    -- msg.post("@render:", "use_fixed_projection", { near = -1, far = 1, zoom = 2 })
    -- msg.post("@render:", "use_fixed_fit_projection", { near = -1, far = 1 })

    local state = create_state()
    self.state = state

    local camera_world = create_camera(state, "camera_world", true)
    init_camera(camera_world, get_stretch_projection)
    local camera_gui = create_camera(state, "camera_gui")
    init_camera(camera_gui, get_gui_projection)
    -- Create a special camera that wraps camera components (if they exist)
    -- It will take precedence over any other camera, and not change from messages
    local camera_component = create_camera(state, "camera_component")
    update_state(state)
end

function update(self)
    local state = self.state
    if not state.valid then
        if not update_state(state) then
            return
        end
    end

    local predicates = self.predicates
    -- clear screen buffers
    --
    -- turn on depth_mask before `render.clear()` to clear it as well
    render.set_depth_mask(true)
    render.set_stencil_mask(0xff)
    render.clear(state.clear_buffers)

    -- Render the shadow depth map before selecting the display camera.
    -- The module reads the current light-camera matrices for this frame.
    shadow_mapping.render_depth(self.shadows, predicates.model)

    -- setup camera view and projection
    --
    local draw_options_world = set_camera_world(state, self.shadows)
    render.set_viewport(0, 0, state.window_width, state.window_height)

    -- set states used for all the world predicates
    render.set_blend_func(graphics.BLEND_FACTOR_SRC_ALPHA, graphics.BLEND_FACTOR_ONE_MINUS_SRC_ALPHA)
    render.enable_state(graphics.STATE_DEPTH_TEST)

    -- render `model` predicate for default 3D material
    --
    render.enable_state(graphics.STATE_CULL_FACE)

    -- The module temporarily binds the shadow depth texture and receiver material.
    shadow_mapping.render_models(self.shadows, predicates.model, draw_options_world)

    render.set_depth_mask(false)
    render.disable_state(graphics.STATE_CULL_FACE)

    -- render the other components: sprites, tilemaps, particles etc
    --
    render.enable_state(graphics.STATE_BLEND)
    render.draw(predicates.tile, draw_options_world)
    render.draw(predicates.particle, draw_options_world)
    render.disable_state(graphics.STATE_DEPTH_TEST)

    render.draw_debug3d()

    reset_camera_world(state)

    -- render GUI
    --
    local camera_gui = state.cameras.camera_gui
    render.set_view(camera_gui.view)
    render.set_projection(camera_gui.proj)

    render.enable_state(graphics.STATE_STENCIL_TEST)
    render.draw(predicates.gui, camera_gui.options)
    render.draw(predicates.debug_text, camera_gui.options)
    render.disable_state(graphics.STATE_STENCIL_TEST)
    render.disable_state(graphics.STATE_BLEND)
end

function final(self)
    shadow_mapping.final(self.shadows)
end

function on_message(self, message_id, message)
    -- Let the module consume its configuration message, then
    -- continue with the copied default renderer's messages when it returns false.
    if shadow_mapping.on_message(self.shadows, message_id, message) then
        return
    end

    local state = self.state
    local camera = state.main_camera

    if message_id == MSG_CLEAR_COLOR then
        update_clear_color(state, message.color)
    elseif message_id == MSG_WINDOW_RESIZED then
        update_state(state)
    elseif message_id == MSG_SET_VIEW_PROJ then
        camera.view = message.view
        self.camera_projection = message.projection or vmath.matrix4()
        update_camera(camera, state)
    elseif message_id == MSG_SET_CAMERA_PROJ then
        camera.projection_fn = function() return self.camera_projection end
    elseif message_id == MSG_USE_STRETCH_PROJ then
        init_camera(camera, get_stretch_projection, message.near, message.far)
        update_camera(camera, state)
    elseif message_id == MSG_USE_FIXED_PROJ then
        init_camera(camera, get_fixed_projection, message.near, message.far, message.zoom)
        update_camera(camera, state)
    elseif message_id == MSG_USE_FIXED_FIT_PROJ then
        init_camera(camera, get_fixed_fit_projection, message.near, message.far)
        update_camera(camera, state)
    end
end

#version 140

in highp vec4 position;
in highp mat4 mtx_world;

uniform vs_uniforms
{
    highp mat4 mtx_view;
    highp mat4 mtx_proj;
};

void main()
{
    // The fixed-function depth output is generated from gl_Position. No color
    // information is needed for the shadow map.
    gl_Position = mtx_proj * mtx_view * mtx_world * vec4(position.xyz, 1.0);
}

#version 140

// Defold still requires a valid fragment-stage entry point even though
// the shadow render target has no color attachment and color writes are disabled.

void main()
{
}

#version 140

in highp vec4 position;
in mediump vec2 texcoord0;
in mediump vec3 normal;
in highp mat4 mtx_world;
in highp mat4 mtx_normal;

out highp vec4 var_position;
out mediump vec3 var_normal;
out mediump vec2 var_texcoord0;

// Required by /builtins/materials/lighting.glsl in the fragment shader.
out highp mat4 var_view;

// Homogeneous shadow texture coordinates. Keeping w until the fragment stage
// preserves correct interpolation before the perspective divide.
out highp vec4 var_shadow_coord;

uniform vs_uniforms
{
    highp mat4 mtx_view;
    highp mat4 mtx_proj;
    highp mat4 mtx_shadow;
};

void main()
{
    // Convert the position to world space.
    highp vec4 world_position = mtx_world * vec4(position.xyz, 1.0);

    // Convert the world position to view space.
    highp vec4 view_position = mtx_view * world_position;

    // Store the view position.
    var_position = view_position;

    // Store the normal.
    var_normal = normalize(
        (mtx_normal * vec4(normal, 0.0)).xyz
    );

    // Store the texture coordinates.
    var_texcoord0 = texcoord0;

    // Store the view matrix.
    var_view = mtx_view;

    // Convert the world position to homogeneous shadow texture coordinates texture coordinates.
    var_shadow_coord = mtx_shadow * world_position;

    gl_Position = mtx_proj * view_position;
}

#version 140

in highp vec4 var_position;
in mediump vec3 var_normal;
in mediump vec2 var_texcoord0;

// Required by /builtins/materials/lighting.glsl. Its helper functions use this
// matrix to transform light positions and directions from world to view space.
in highp mat4 var_view;

// Homogeneous shadow texture coordinates produced by the receiver vertex shader.
// The perspective divide is performed per fragment.
in highp vec4 var_shadow_coord;

out vec4 out_fragColor;

uniform mediump sampler2D tex0;
uniform highp sampler2D shadow_map;

uniform fs_uniforms
{
    mediump vec4 tint;

    // xy = reciprocal shadow-map width and height.
    highp vec4 shadow_texel_size;

    // x = PCF kernel width (1, 3, or 5)
    // y = PCF sample spacing in shadow-map texels
    // z = minimum receiver bias
    // w = slope/normal-dependent receiver bias
    highp vec4 shadow_params;
};

#define MAX_LIGHT_COUNT 8

// Keep Defold's built-in lighting implementation unchanged.
#include "/builtins/materials/lighting.glsl"

// Reusable shadow functions with an explicit, name-independent interface.
#include "/example/materials/shadows.glsl"


// Equivalent to Defold's diffuse_lambert(view_normal, view_position),
// except that directional-light contributions are multiplied by shadow visibility.
// Point and spot lights are not affected by this directional shadow map.
vec3 shadowed_diffuse_lambert(vec3 view_normal, vec3 view_position)
{
    vec3 total_light = vec3(0.0);
    int light_count = int(light_info.w);

    // Iterate over the lights.
    for (int i = 0; i < MAX_LIGHT_COUNT; ++i)
    {
        // If the light index is greater than the light count, break.
        if (i >= light_count)
        {
            break;
        }

        // Calculate the light contribution for the current light.
        vec3 light_contribution = diffuse_lambert(i, view_normal, view_position);

        // If the light is directional, calculate the shadow visibility.
        if (int(lights[i].params.x) == LIGHT_DIRECTIONAL)
        {
            // This is the same normalized direction convention used internally
            // by Defold's directional branch in diffuse_lambert().
            highp vec3 direction_to_light = -world_to_view_dir(lights[i].direction_range.xyz);

            // Calculate the shadow visibility for the current light.
            light_contribution *= directional_shadow_visibility(
                shadow_map,
                var_shadow_coord,
                shadow_texel_size.xy,
                shadow_params,
                view_normal,
                direction_to_light
            );
        }

        // Add the light contribution to the total light.
        total_light += light_contribution;
    }

    // Return the total light.
    return total_light;
}


void main()
{
    // Texture profiles may premultiply color textures,
    // so premultiply the tint as well before combining them.
    vec4 tint_pm = vec4(tint.xyz * tint.w, tint.w);

    // Multiply the texture by the tinted color.
    vec4 color = texture(tex0, var_texcoord0.xy) * tint_pm;

    // directional_shadow_visibility() expects a normalized view-space normal.
    vec3 view_normal = normalize(var_normal);

    // Calculate the ambient light.
    vec3 ambient = ambient_light();

    // Calculate the diffuse light.
    vec3 diffuse = shadowed_diffuse_lambert(view_normal, var_position.xyz);

    // Combine the ambient and diffuse light for an output color.
    out_fragColor = vec4(color.rgb * (ambient + diffuse), color.a);
}

#ifndef DIRECTIONAL_SHADOWS_GLSL
#define DIRECTIONAL_SHADOWS_GLSL

// Module for directional-shadow functions.
//
// Packed shadow parameter layout:
// shadow_params.x = PCF kernel width: 1, 3, or 5 (1 means one hard comparison without filtering).
// shadow_params.y = distance between PCF samples in shadow-map texels.
// shadow_params.z = minimum receiver-side depth bias.
// shadow_params.w = slope/normal-dependent receiver-side depth bias.

// Compare the receiver depth with one shadow-map sample.
// A value of 1.0 means lit, 0.0 means shadowed.
highp float directional_shadow_compare(
    sampler2D shadow_texture,
    highp vec2 uv,
    highp float receiver_depth
)
{
    // Samples outside the light camera volume are treated as lit.
    // This avoids stretching edge texels beyond the shadow map
    // when a PCF tap crosses a texture boundary.
    if (
        any( lessThan(uv, vec2(0.0)) ) ||
        any( greaterThan(uv, vec2(1.0)) )
    )
    {
        return 1.0;
    }

    // Sample the shadow map at the given UV coordinates and return the depth value.
    highp float stored_depth = texture(shadow_texture, uv).r;

    // If the receiver depth is less than or equal to the stored depth,
    // return 1.0 (lit), otherwise return 0.0 (shadowed).
    return receiver_depth <= stored_depth ? 1.0 : 0.0;
}


// Calculate receiver-side bias from normalized vectors.
//
// Surfaces facing the light use minimum_bias.
// Surfaces close to parallel with the light direction use a larger value controlled by slope_bias.
highp float directional_shadow_receiver_bias(
    highp vec3 normalized_view_normal,
    highp vec3 normalized_direction_to_light,
    highp float minimum_bias,
    highp float slope_bias
)
{
    // Calculate the dot product of the view normal and the light direction.
    highp float n_dot_l = max( dot(normalized_view_normal, normalized_direction_to_light), 0.0 );

    // Return the maximum of the minimum bias and the slope bias multiplied by the (1 - n_dot_l).
    return max( minimum_bias, slope_bias * (1.0 - n_dot_l) );
}


// Filter a shadow comparison with a fixed 3x3 kernel.
// This function always performs nine depth-texture samples.
highp float directional_shadow_pcf_3x3(
    sampler2D shadow_texture,
    highp vec2 center_uv,
    highp float receiver_depth,
    highp vec2 sample_step
)
{
    // Initialize the visibility to 0.0.
    highp float visibility = 0.0;

    // Iterate over the 3x3 kernel.
    for (int y = -1; y <= 1; ++y)
    {
        for (int x = -1; x <= 1; ++x)
        {
            // Calculate the offset for the current sample.
            highp vec2 offset = vec2(float(x), float(y)) * sample_step;

            // Add the visibility of the current sample to the total visibility.
            visibility += directional_shadow_compare(
                shadow_texture,
                center_uv + offset,
                receiver_depth
            );
        }
    }

    // Return the average visibility of the 3x3 kernel.
    return visibility / 9.0;
}


// Filter a shadow comparison with a fixed 5x5 kernel.
// This function always performs twenty-five depth-texture samples.
highp float directional_shadow_pcf_5x5(
    sampler2D shadow_texture,
    highp vec2 center_uv,
    highp float receiver_depth,
    highp vec2 sample_step
)
{
    // Initialize the visibility to 0.0.
    highp float visibility = 0.0;

    // Iterate over the 5x5 kernel.
    for (int y = -2; y <= 2; ++y)
    {
        for (int x = -2; x <= 2; ++x)
        {
            // Calculate the offset for the current sample.
            highp vec2 offset = vec2(float(x), float(y)) * sample_step;

            // Add the visibility of the current sample to the total visibility.
            visibility += directional_shadow_compare(
                shadow_texture,
                center_uv + offset,
                receiver_depth
            );
        }
    }

    // Return the average visibility of the 5x5 kernel.
    return visibility / 25.0;
}


// Return directional-light visibility for one fragment.
// Supported kernel widths: 1 = one hard comparison, 3 = fixed 3x3 PCF, 9 samples, 5 = fixed 5x5 PCF, 25 samples.
// Parameterpcf_sample_spacing changes the distance between taps.
//It changes the filter footprint and appearance, but not the sample count of the selected kernel.
highp float directional_shadow_visibility(
    sampler2D shadow_texture,
    highp vec4 shadow_coord,
    highp vec2 shadow_texel_size,
    highp vec4 shadow_params,
    highp vec3 normalized_view_normal,
    highp vec3 normalized_direction_to_light
)
{
    // Invalid homogeneous coordinates cannot be projected into the shadow map.
    if (shadow_coord.w <= 0.0)
    {
        return 1.0;
    }

    // The shadow matrix already contains the clip-to-texture conversion,
    // so the projected coordinates are expected in the 0..1 range.
    highp vec3 projected = shadow_coord.xyz / shadow_coord.w;

    // If the projected coordinates are outside the 0..1 range, return 1.0 (lit).
    if (
        any( lessThan(projected, vec3(0.0)) ) ||
        any( greaterThan(projected, vec3(1.0)) )
    )
    {
        return 1.0;
    }

    // Extract the PCF kernel size, sample spacing, minimum bias, and slope bias from the shadow parameters.
    int pcf_kernel_size = int(shadow_params.x + 0.5);
    highp float pcf_sample_spacing = shadow_params.y;
    highp float minimum_bias = shadow_params.z;
    highp float slope_bias = shadow_params.w;

    // Calculate the receiver depth with bias.
    highp float receiver_depth = projected.z -
        directional_shadow_receiver_bias(
            normalized_view_normal,
            normalized_direction_to_light,
            minimum_bias,
            slope_bias
        );

    // If the PCF kernel size is 3, use the 3x3 PCF kernel.
    if (pcf_kernel_size == 3)
    {
        // Calculate the sample step.
        highp vec2 sample_step =
            shadow_texel_size * pcf_sample_spacing;

        // Use the 3x3 PCF kernel to calculate the visibility.
        return directional_shadow_pcf_3x3(
            shadow_texture,
            projected.xy,
            receiver_depth,
            sample_step
        );
    }

    // If the PCF kernel size is 5, use the 5x5 PCF kernel.
    if (pcf_kernel_size == 5)
    {
        // Calculate the sample step.
        highp vec2 sample_step =
            shadow_texel_size * pcf_sample_spacing;

        // Use the 5x5 PCF kernel to calculate the visibility.
        return directional_shadow_pcf_5x5(
            shadow_texture,
            projected.xy,
            receiver_depth,
            sample_step
        );
    }

    // Kernel size 1, or an unsupported value, falls back to one hard depth comparison.
    // Lua validates the normal 1/3/5 configuration path.
    return directional_shadow_compare(
        shadow_texture,
        projected.xy,
        receiver_depth
    );
}

#endif
