Dynamic physics

This example shows a simple setup with dynamic physics objects.

dynamic

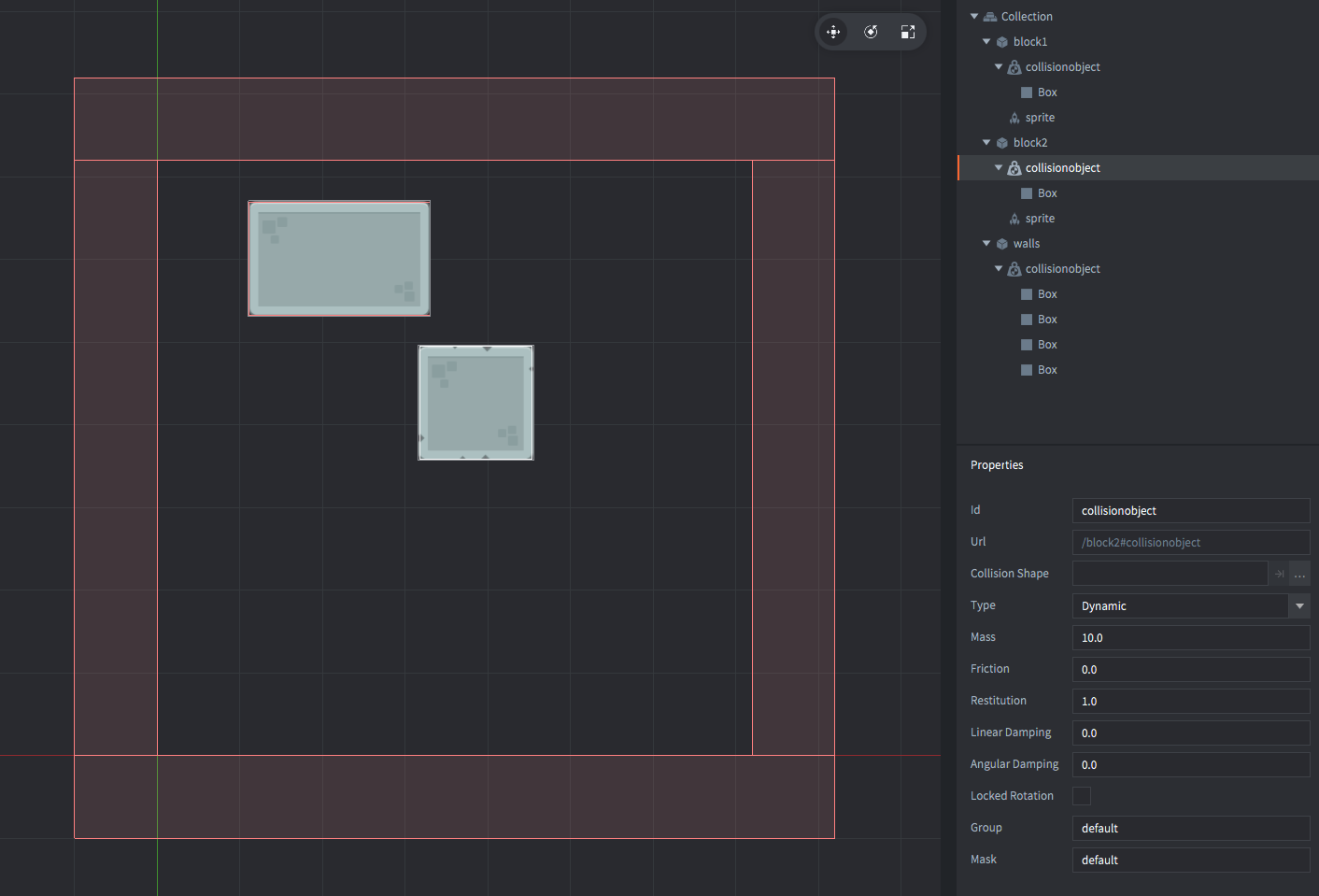

The setup consists of three game objects. The game.project physics GravityY property is set to -500 to match the scale of the setup.

block1
The rectangular stone block. Contains:
  • A Sprite component with the stone block image.
  • A Collision object component. The Type is set to DYNAMIC, Friction is set to 0 and Restitution to 1.0 (it will bounce forever). A box Shape matching the sprite image is added to the componens.
block2
The square stone block. Contains:
  • A Sprite component with the stone block image.
  • A Collision object component. Also has Type set to DYNAMIC, Friction set to 0 and Restitution to 1.0. A box Shape matching the sprite image is added to the componens.
walls
The outer walls. Contains:
  • A Collision object component. The Type is set to STATIC. 4 box Shapes are added to the component. These are placed just outside of the game view.

If you want to play with these examples, you can get the project on Github.

Do you want to see more examples? Why not write a few yourself and submit a pull request? We love contributions.
